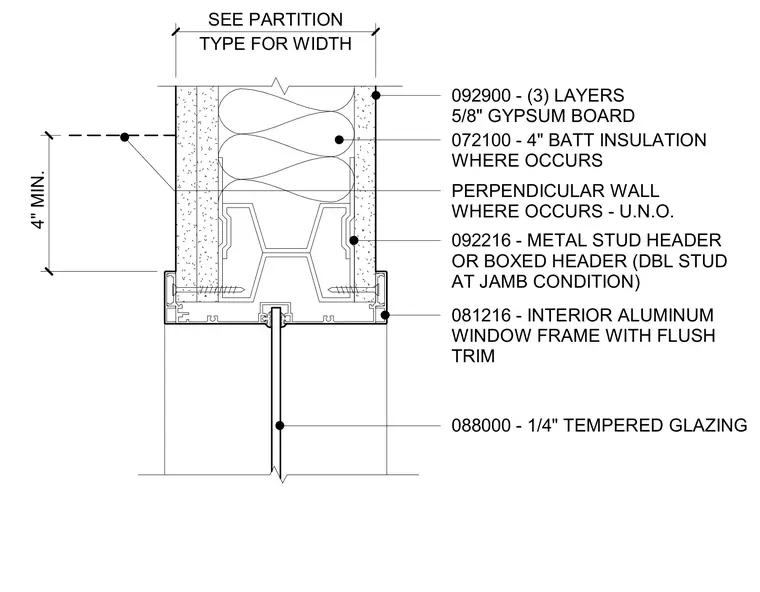

An interior aluminum window frame with flush trim is secured to a metal stud header or boxed header, utilizing double studs at the jamb condition. The surrounding partition is framed with cold-formed steel studs and finished with three layers of 5/8-inch gypsum board on each side, installed perpendicular where required. Four inches of batt insulation is placed within the stud cavity where indicated. A 1/4-inch tempered glazing pane is set into the aluminum frame.
092216 - METAL STUD HEADER OR BOXED HEADER (DBL STUD AT JAMB CONDITION) 081216 - INTERIOR ALUMINUM WINDOW FRAME WITH FLUSH TRIM 092900 - (3) LAYERS 5/8" GYPSUM BOARD PERPENDICULAR WALL WHERE OCCURS - U.N.O. 088000 - 1/4" TEMPERED GLAZING TYPE FOR WIDTH SEE PARTITION 072100 - 4" BATT INSULATION WHERE OCCURS 4" MIN.
