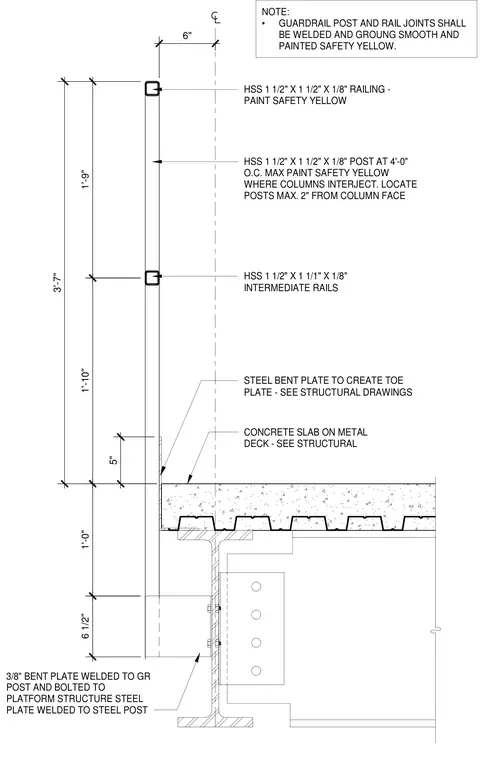

A steel guardrail assembly mounts to a mezzanine edge consisting of a concrete slab on metal deck supported by structural steel framing. The guardrail utilizes 1 1/2-inch by 1 1/2-inch by 1/8-inch hollow structural section posts spaced at a maximum of 4 feet on center, located within 2 inches of column faces. Intermediate rails are constructed from 1 1/2-inch by 1 1/16-inch by 1/8-inch hollow structural sections, set at heights providing a total guardrail height of 3 feet 7 inches. The guardrail post connects to the platform structure via a 3/8-inch bent plate welded to the guardrail post and bolted to a steel plate welded to the structural steel post. A steel bent plate creates a toe plate extending 5 inches above the concrete slab edge. All guardrail post and rail joints are welded, ground smooth, and painted safety yellow.
STEEL BENT PLATE TO CREATE TOE PLATE - SEE STRUCTURAL DRAWINGS CONCRETE SLAB ON METAL DECK - SEE STRUCTURAL 6" 6 1/2" 1'-0" 5" 3/8" BENT PLATE WELDED TO GR POST AND BOLTED TO PLATFORM STRUCTURE STEEL PLATE WELDED TO STEEL POST HSS 1 1/2" X 1 1/1" X 1/8" INTERMEDIATE RAILS HSS 1 1/2" X 1 1/2" X 1/8" POST AT 4'-0" O.C. MAX PAINT SAFETY YELLOW WHERE COLUMNS INTERJECT. LOCATE POSTS MAX. 2" FROM COLUMN FACE HSS 1 1/2" X 1 1/2" X 1/8" RAILING - PAINT SAFETY YELLOW 1'-10" 1'-9" 3'-7" NOTE: • GUARDRAIL POST AND RAIL JOINTS SHALL BE WELDED AND GROUNG SMOOTH AND PAINTED SAFETY YELLOW.
