Two adjacent concrete tilt-up wall panels are separated by a one-half-inch vertical joint spanning continuously from the footing to the top of the panel. A backer rod is installed at each face of the wall within the joint cavity. Continuous sealant is applied over the backer rod on both the interior and exterior faces.

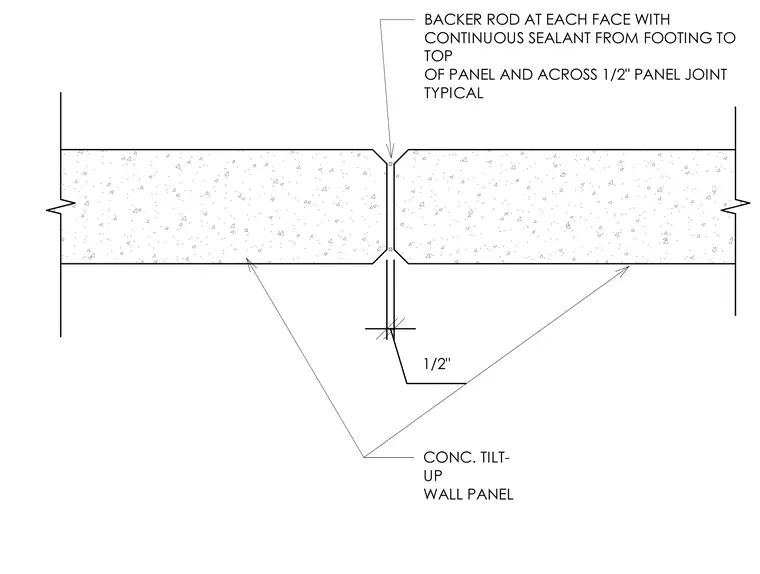

BACKER ROD AT EACH FACE WITH CONTINUOUS SEALANT FROM FOOTING TO TOP OF PANEL AND ACROSS 1/2" PANEL JOINT TYPICAL CONC. TILT- UP WALL PANEL 1/2"
