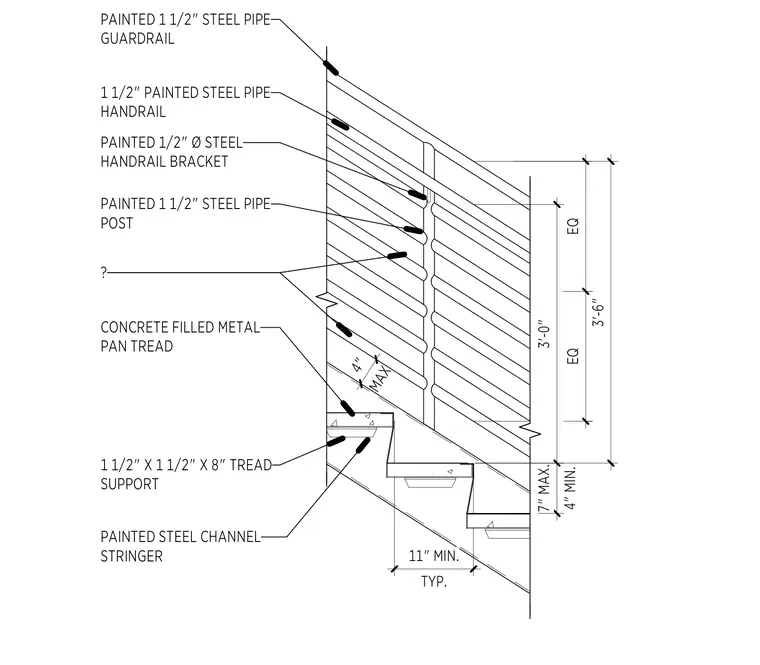

This stair assembly features concrete-filled metal pan treads supported by one-and-a-half-inch by one-and-a-half-inch by eight-inch tread supports welded to painted steel channel stringers. The guardrail system consists of painted one-and-a-half-inch steel pipe posts and a top guardrail, accompanied by a separate one-and-a-half-inch painted steel handrail mounted on a half-inch diameter steel handrail bracket. Dimensions specify a typical three-foot-six-inch guardrail height, equal spacing between intermediate rails, a maximum four-inch opening between rails, seven-inch maximum risers, and eleven-inch minimum treads.
3'-0" 4" MIN. 7" MAX. 3'-6" TYP. 11" MIN. MAX 4" EQ EQ PAINTED 1 1/2" STEEL PIPE GUARDRAIL 1 1/2" PAINTED STEEL PIPE HANDRAIL PAINTED 1/2" Ø STEEL HANDRAIL BRACKET PAINTED 1 1/2" STEEL PIPE POST ? CONCRETE FILLED METAL PAN TREAD 1 1/2" X 1 1/2" X 8" TREAD SUPPORT PAINTED STEEL CHANNEL STRINGER
