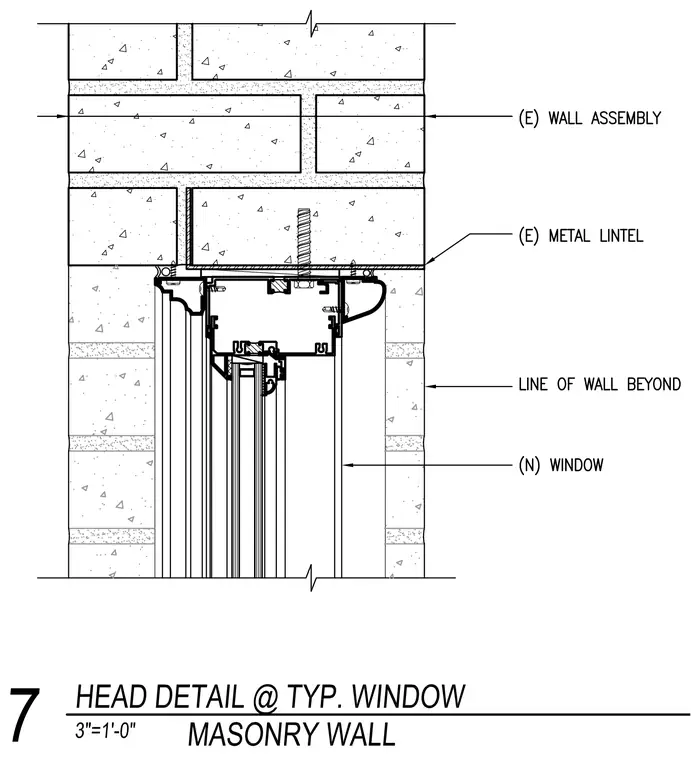

Window head connection within an existing masonry wall assembly. An existing metal lintel supports the masonry above the opening, anchored with threaded fasteners extending up into the wall. A new window head frame is positioned directly beneath the lintel, aligned with the line of the wall beyond. The surrounding masonry wall assembly provides continuous support and enclosure.
