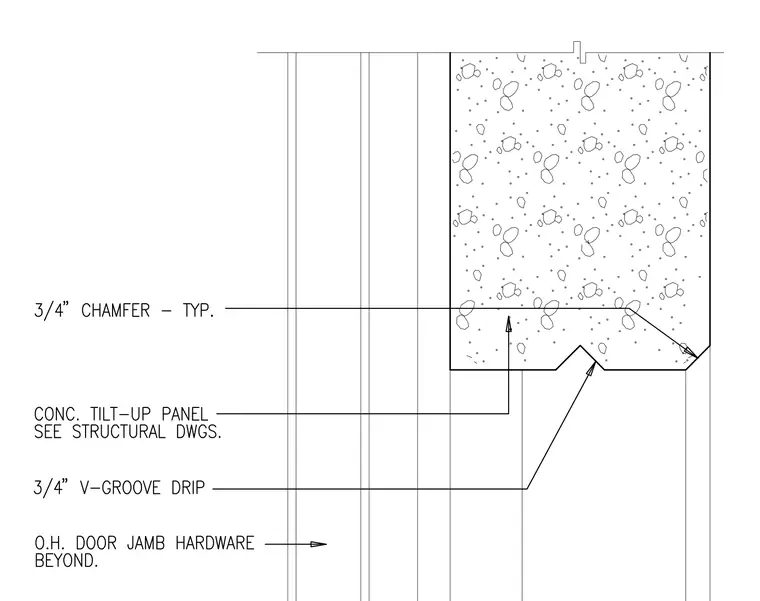

This concrete tilt-up panel detail is sized per structural drawings and features a three-quarter-inch typical chamfer along the corner edges. A three-quarter-inch V-groove drip is formed into the underside of the panel concrete. Overhead door jamb hardware is shown beyond the panel assembly.
