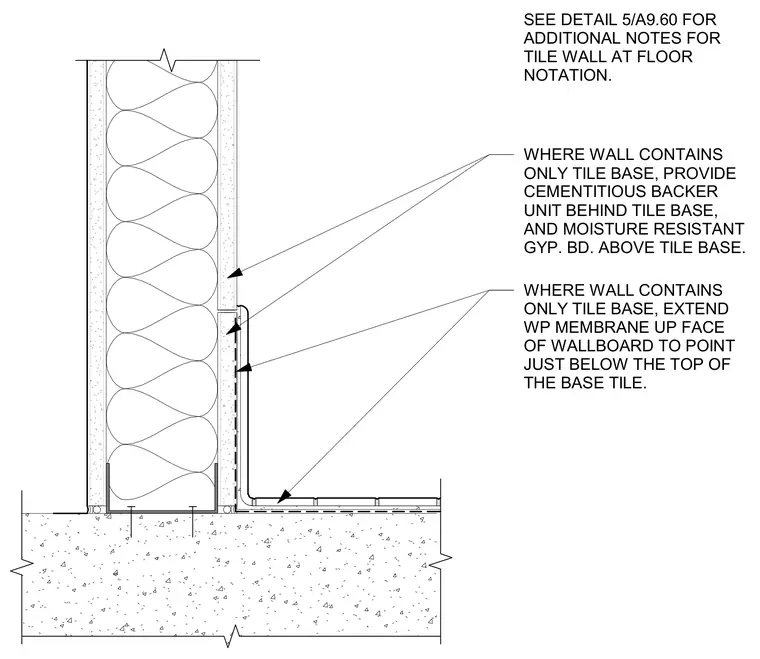

Where the wall contains only a tile base, a cementitious backer unit is installed behind the tile base with moisture-resistant gypsum board above. A waterproof membrane extends up the face of the wallboard to a point just below the top of the base tile. The assembly transitions down to a concrete floor slab with framing anchored in place.
SEE DETAIL 5/A9.60 FOR ADDITIONAL NOTES FOR TILE WALL AT FLOOR NOTATION. WHERE WALL CONTAINS ONLY TILE BASE, EXTEND WP MEMBRANE UP FACE OF WALLBOARD TO POINT JUST BELOW THE TOP OF THE BASE TILE. WHERE WALL CONTAINS ONLY TILE BASE, PROVIDE CEMENTITIOUS BACKER UNIT BEHIND TILE BASE, AND MOISTURE RESISTANT GYP. BD. ABOVE TILE BASE.
