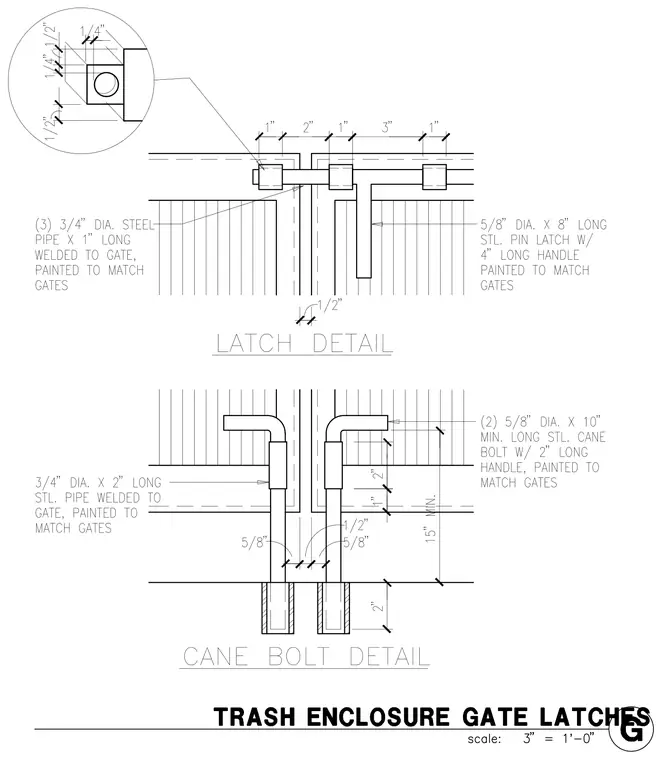

The gate latch assembly features a five-eighths inch diameter by eight inches long steel pin latch with a four-inch long handle, guided by three three-fourths inch diameter steel pipes one inch long welded to the gate and painted to match. The cane bolt assembly uses two five-eighths inch diameter by ten inches minimum long steel cane bolts with two-inch long handles, guided by three-fourths inch diameter by two inches long steel pipes welded to the gate. Both assemblies are painted to match the gates and include detailed dimensioning for clearances and embedment.
