Architectural · A-7Y4HZ

Roof Edge and Parapet Flashing at Concrete Stem Wall

Materials

Concrete Steel Timber / Wood Aluminum Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Beams Walls Roofs Floors / Slabs Stem Walls Waterproofing / Flashing Insulation Drainage

Connections

Welded Connection

About this detail

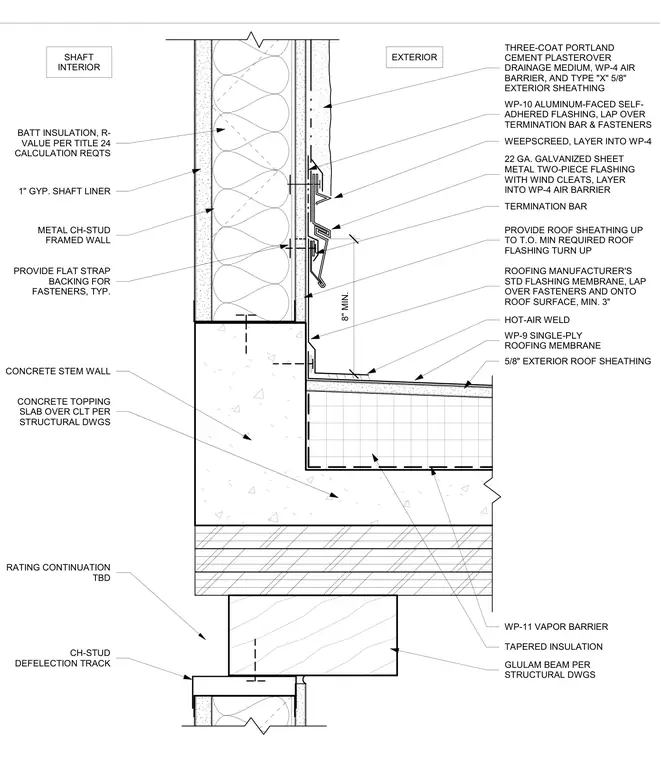

The assembly transitions from a cross-laminated timber roof deck with a concrete topping slab and glulam beam up to a concrete stem wall and metal C-H stud framed exterior wall. A single-ply roofing membrane is laid over tapered insulation with a hot-air welded manufacturer's standard flashing membrane extending at least three inches onto the roof surface. A twenty-two gauge galvanized sheet metal two-piece flashing with wind cleats ties into an air barrier, overlapping a termination bar and fasteners. Exterior wall layers include type X five-eighths inch exterior sheathing, an air barrier, drainage medium, and a three-coat portland cement plaster with a weepscreed. The interior features a one-inch gypsum shaft liner, batt insulation sized per Title 24 calculations, and flat strap backing for fasteners. A C-H stud deflection track is positioned at the underside near the structural glulam beam.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
