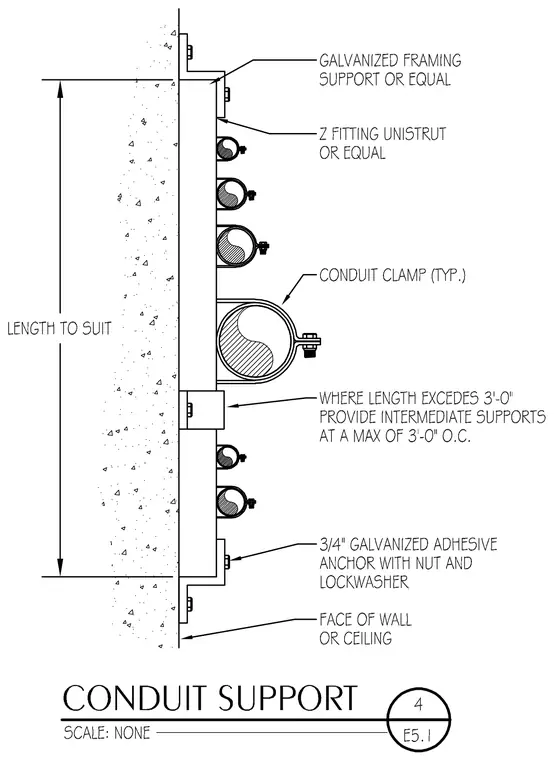

Electrical conduits of varying diameters attach to a wall or ceiling face using galvanized framing support or a Z-fitting unistrut secured with conduit clamps. The assembly fastens to the structural concrete using three-quarter-inch galvanized adhesive anchors complete with nuts and lockwashers. Where the support length exceeds three feet, intermediate supports are provided at a maximum spacing of three feet on center with length to suit field conditions.
