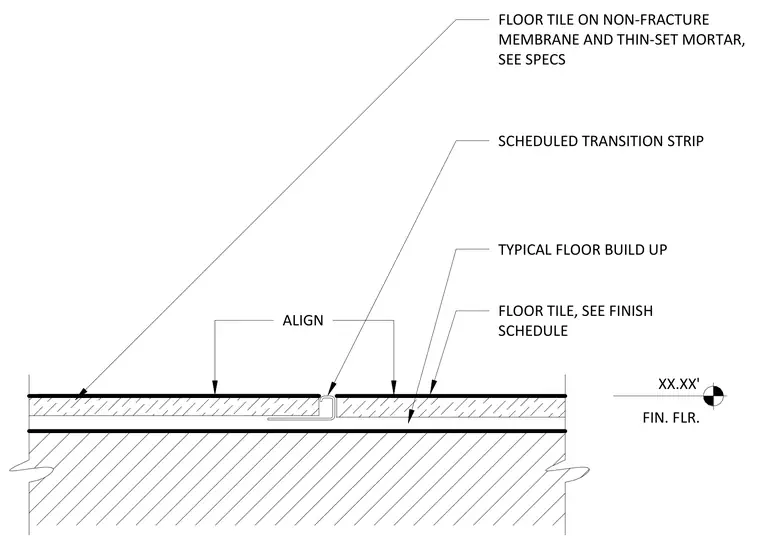

Floor tile is installed over a non-fracture membrane and thin-set mortar, matching the scheduled floor finish. A scheduled transition strip is placed at the joint between adjacent floor tile areas to align the finished floor elevations.
FLOOR TILE, SEE FINISH SCHEDULE FLOOR TILE ON NON-FRACTURE MEMBRANE AND THIN-SET MORTAR, SEE SPECS TYPICAL FLOOR BUILD UP SCHEDULED TRANSITION STRIP ALIGN XX.XX' FIN. FLR.
