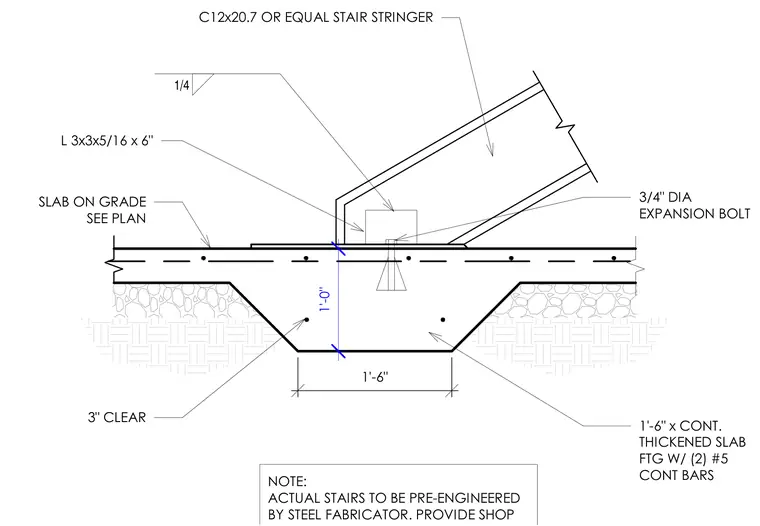

A C12x20.7 or equal steel stair stringer frames into a base angle welded with a quarter-inch fillet weld and anchored to a thickened slab on grade. The connection uses a 3x3x5/16 inch angle by 6 inches long secured by a 3/4-inch diameter expansion bolt into the concrete foundation. The continuous thickened slab footing measures 1 foot 6 inches wide with three inches of clear cover and contains two continuous number 5 reinforcing bars. A note specifies that actual stairs are to be pre-engineered by the steel fabricator.
1'-6" C12x20.7 OR EQUAL STAIR STRINGER L 3x3x5/16 x 6" SLAB ON GRADE SEE PLAN 3" CLEAR 1'-6" x CONT. THICKENED SLAB FTG W/ (2) #5 CONT BARS 3/4" DIA EXPANSION BOLT NOTE: ACTUAL STAIRS TO BE PRE-ENGINEERED BY STEEL FABRICATOR. PROVIDE SHOP 1'-0" 1/4
