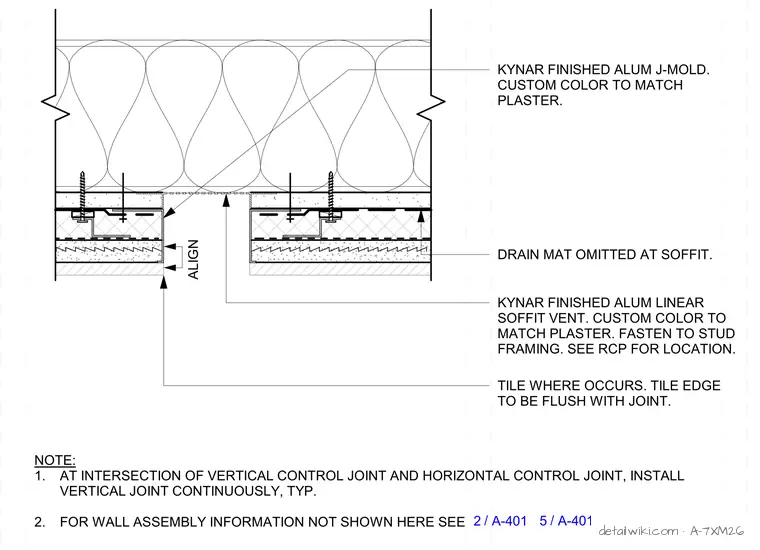

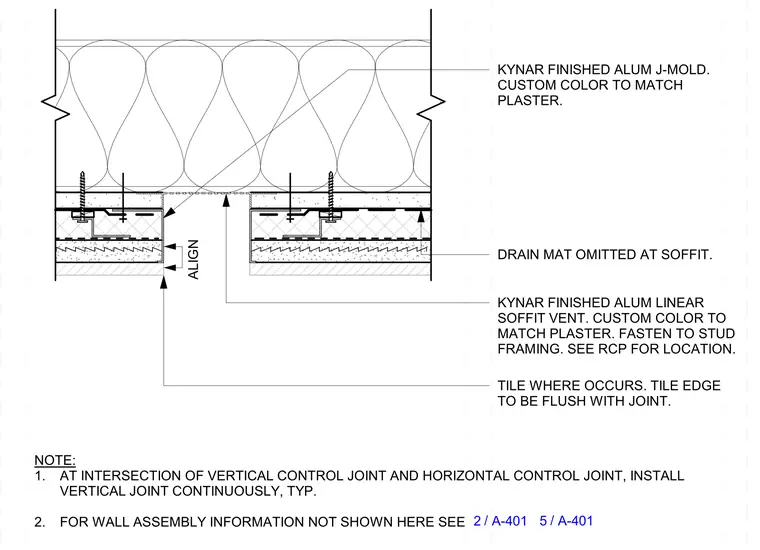

This soffit vent assembly integrates a Kynar finished aluminum linear soffit vent and a Kynar finished aluminum J-mold, both finished in a custom color to match the adjacent plaster. The components are fastened directly to the stud framing, with the drain mat omitted at the soffit. Tile is installed where indicated, with its edge aligned flush with the joint. Vertical control joints are installed continuously at intersections with horizontal control joints.
NOTE: 1. AT INTERSECTION OF VERTICAL CONTROL JOINT AND HORIZONTAL CONTROL JOINT, INSTALL VERTICAL JOINT CONTINUOUSLY, TYP. 2. FOR WALL ASSEMBLY INFORMATION NOT SHOWN HERE SEE TILE WHERE OCCURS. TILE EDGE TO BE FLUSH WITH JOINT. / 2 A-401 / 5 A-401 DRAIN MAT OMITTED AT SOFFIT. KYNAR FINISHED ALUM LINEAR SOFFIT VENT. CUSTOM COLOR TO MATCH PLASTER. FASTEN TO STUD FRAMING. SEE RCP FOR LOCATION. KYNAR FINISHED ALUM J-MOLD. CUSTOM COLOR TO MATCH PLASTER. ALIGN
