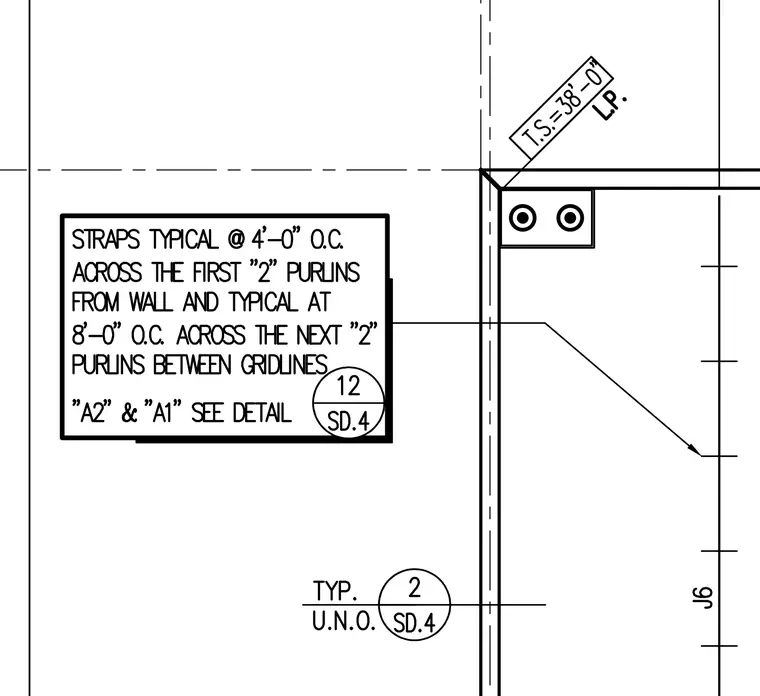

Straps are spaced at four feet on center across the first two purlins from the wall and at eight feet on center across the next two purlins between gridlines A2 and A1, with reference to detail 12 on sheet SD.4. The roof framing indicates a top of steel elevation of thirty-eight feet zero inches at the low point.
