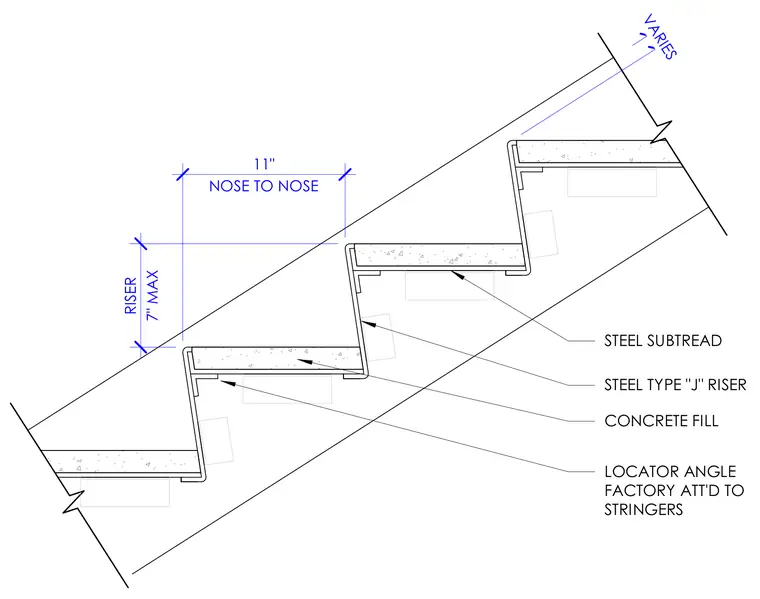

This stair assembly features steel subtreads and type J risers filled with concrete, providing a durable stair tread configuration. The steel subtreads rest on locator angles that are factory-attached to the stringers. The design maintains an eleven-inch nose-to-nose dimension and a maximum seven-inch riser height, with the riser height varying as needed for the run.
STEEL SUBTREAD 7" MAX RISER VARIES STEEL TYPE "J" RISER CONCRETE FILL LOCATOR ANGLE FACTORY ATT'D TO STRINGERS NOSE TO NOSE 11"
