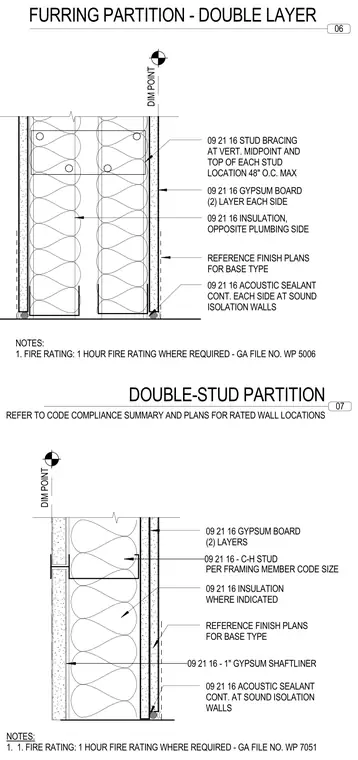

The furring partition assembly consists of C-H studs and one-inch gypsum shaftliner with insulation and double layers of gypsum board on the framing members. Stud bracing is provided at the vertical midpoint and top of each stud at a maximum spacing of 48 inches on center. Continuous acoustic sealant is applied at sound isolation walls, and insulation is placed on the opposite plumbing side. The double-stud partition assembly similarly incorporates double layers of gypsum board on each side with continuous acoustic sealant.
FURRING PARTITION - DOUBLE LAYER 06 NOTES: 1. 1. FIRE RATING: 1 HOUR FIRE RATING WHERE REQUIRED - GA FILE NO. WP 7051 DIM POINT 09 21 16 INSULATION WHERE INDICATED 09 21 16 ACOUSTIC SEALANT CONT. AT SOUND ISOLATION WALLS REFERENCE FINISH PLANS FOR BASE TYPE 09 21 16 GYPSUM BOARD (2) LAYERS PER FRAMING MEMBER CODE SIZE 09 21 16 - C-H STUD 09 21 16 - 1" GYPSUM SHAFTLINER 09 21 16 STUD BRACING AT VERT. MIDPOINT AND TOP OF EACH STUD LOCATION 48" O.C. MAX 09 21 16 GYPSUM BOARD (2) LAYER EACH SIDE REFERENCE FINISH PLANS FOR BASE TYPE 09 21 16 ACOUSTIC SEALANT CONT. EACH SIDE AT SOUND ISOLATION WALLS 09 21 16 INSULATION, OPPOSITE PLUMBING SIDE DIM POINT DOUBLE-STUD PARTITION 07 REFER TO CODE COMPLIANCE SUMMARY AND PLANS FOR RATED WALL LOCATIONS NOTES: 1. FIRE RATING: 1 HOUR FIRE RATING WHERE REQUIRED - GA FILE NO. WP 5006
