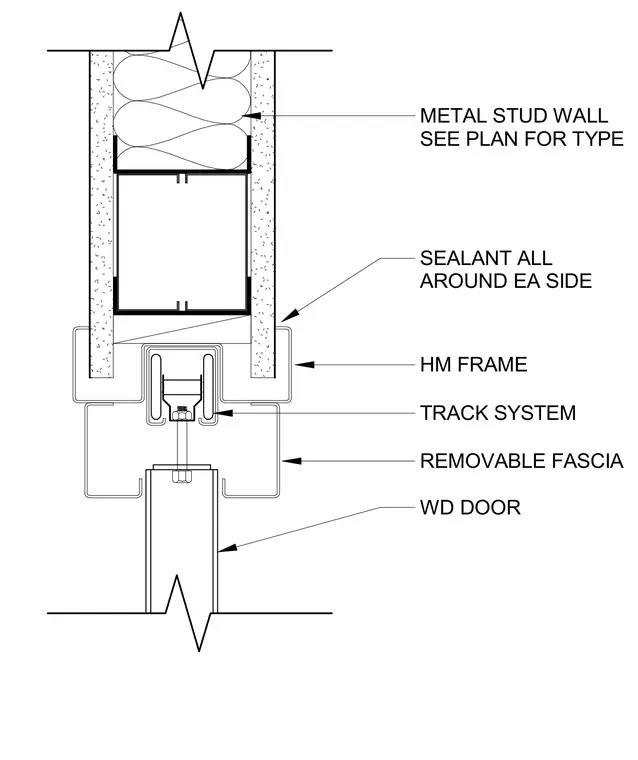

A hollow metal frame is installed within a metal stud wall of a type sized per plan. A track system with a removable fascia conceals the hardware above a wood door. Sealant is applied all around on each side of the frame junction.
HM FRAME WD DOOR METAL STUD WALL SEE PLAN FOR TYPE REMOVABLE FASCIA TRACK SYSTEM SEALANT ALL AROUND EA SIDE
