An accessible stair configuration requires a minimum tread depth of 1'-0". The handrail extension at the top of the stair begins directly above the landing nosing and extends twelve inches minimum. The handrail extension at the bottom of the stair extends at the slope of the stair flight for a horizontal distance equal to one tread depth beyond the bottom tread nosing.

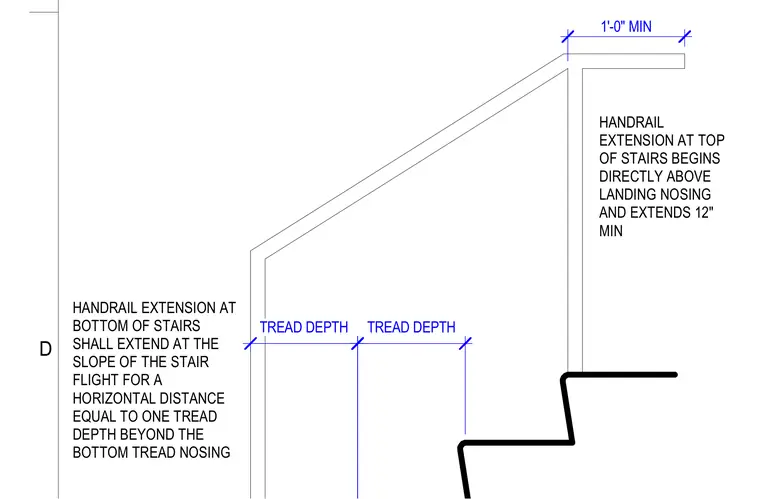

TREAD DEPTH 1'-0" MIN HANDRAIL EXTENSION AT TOP OF STAIRS BEGINS DIRECTLY ABOVE LANDING NOSING AND EXTENDS 12" MIN TREAD DEPTH HANDRAIL EXTENSION AT BOTTOM OF STAIRS SHALL EXTEND AT THE SLOPE OF THE STAIR FLIGHT FOR A HORIZONTAL DISTANCE EQUAL TO ONE TREAD DEPTH BEYOND THE BOTTOM TREAD NOSING D
