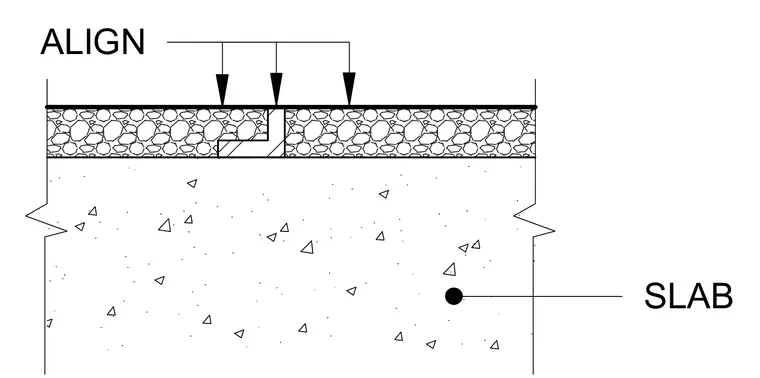

A terrazzo flooring assembly is installed over a concrete slab foundation with an alignment divider strip positioned between adjacent sections. The finished terrazzo topping layer matches the height alignment indicated by the callouts. The concrete slab provides the structural substrate for the flooring system.
