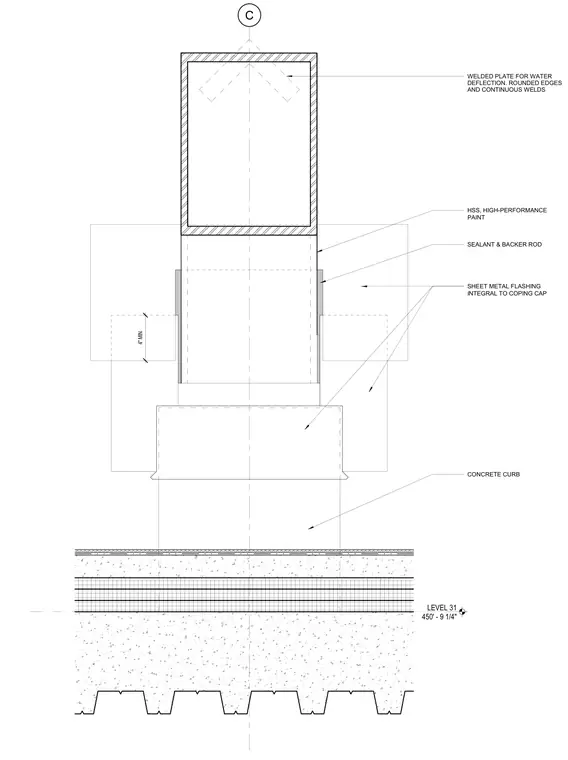

A hollow structural section member passes through a concrete curb at Level 31 and receives high-performance paint finish. A welded plate with rounded edges and continuous welds provides water deflection at the upper penetration. Sheet metal flashing integral to the coping cap ties into the assembly alongside a sealant bead backed by a backer rod. The concrete curb establishes a minimum four-inch height above the structural slab and metal deck.
C LEVEL 31 450' - 9 1/4" SHEET METAL FLASHING INTEGRAL TO COPING CAP SEALANT & BACKER ROD HSS, HIGH-PERFORMANCE PAINT CONCRETE CURB 4" MIN WELDED PLATE FOR WATER DEFLECTION. ROUNDED EDGES AND CONTINUOUS WELDS
