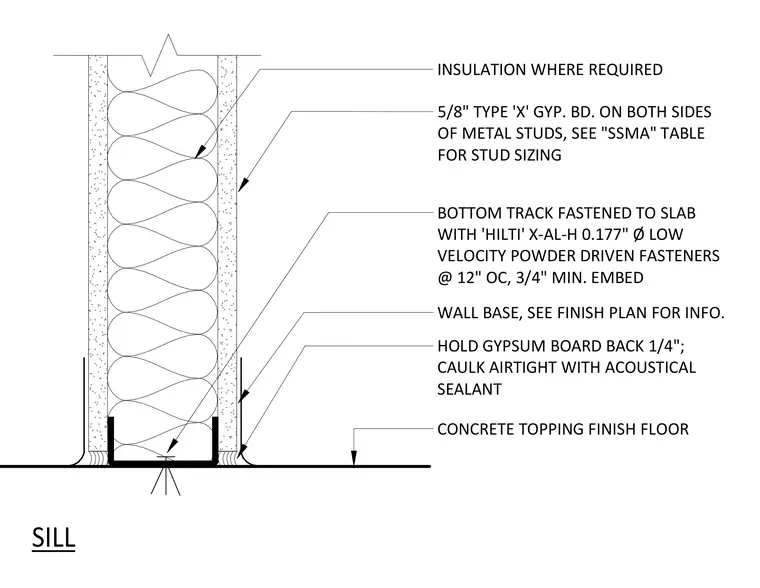

The metal stud bottom track bears directly on a concrete topping finish floor and is fastened to the underlying slab with 0.177-inch diameter low velocity powder-driven fasteners spaced at 12 inches on center with a three-quarter-inch minimum embedment. Five-eighths-inch Type X gypsum board is applied to both sides of the metal studs with stud sizing determined per the SSMA table. The gypsum board is held back one-quarter inch at the floor intersection and sealed airtight with acoustical sealant behind the wall base. Insulation is installed within the stud cavity where required.
BOTTOM TRACK FASTENED TO SLAB WITH 'HILTI' X-AL-H 0.177" Ø LOW VELOCITY POWDER DRIVEN FASTENERS @ 12" OC, 3/4" MIN. EMBED WALL BASE, SEE FINISH PLAN FOR INFO. CONCRETE TOPPING FINISH FLOOR 5/8" TYPE 'X' GYP. BD. ON BOTH SIDES OF METAL STUDS, SEE "SSMA" TABLE FOR STUD SIZING HOLD GYPSUM BOARD BACK 1/4"; CAULK AIRTIGHT WITH ACOUSTICAL SEALANT INSULATION WHERE REQUIRED SILL
