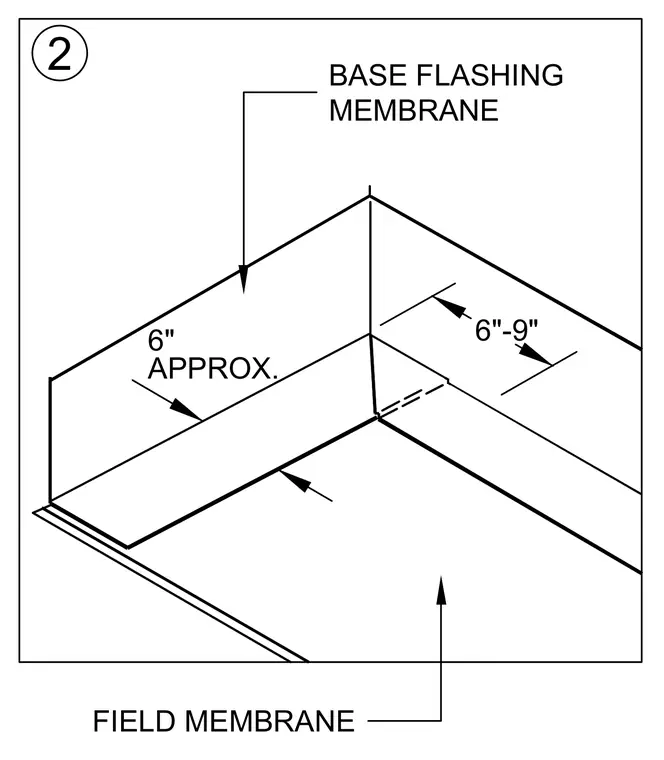

The field membrane lays horizontally across the roof deck with a base flashing membrane extending vertically up the parapet or curb wall. Dimensions indicate a six-inch approximate vertical rise and a six to nine-inch horizontal overlap dimension at the corner transition.
2 6" APPROX. 6"-9" BASE FLASHING MEMBRANE FIELD MEMBRANE
