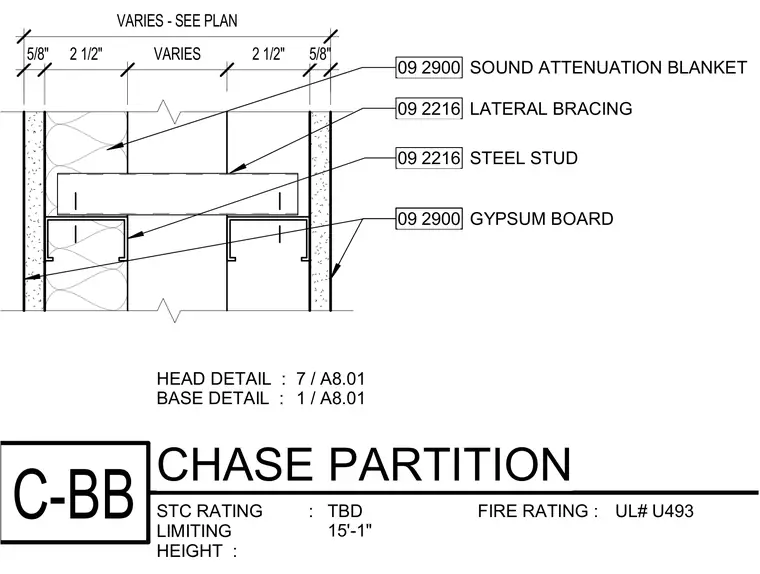

A chase partition assembly consists of two parallel rows of steel studs faced with five-eighths inch gypsum board on each exterior side. A sound attenuation blanket fills the cavity between the stud walls, which are connected by lateral bracing spaced across the variable chase width. Dimensions indicate five-eighths inch thick gypsum board, two and one-half inch steel studs, and a variable spacing in between as sized per plan. The assembly references UL design number U493 for fire rating compliance.
STC RATING : FIRE RATING : LIMITING HEIGHT : HEAD DETAIL : BASE DETAIL : C-BB CHASE PARTITION TBD UL# U493 15'-1" 7 / A8.01 1 / A8.01 5/8" 2 1/2" VARIES 2 1/2" 5/8" 09 2900 GYPSUM BOARD VARIES - SEE PLAN 09 2216 STEEL STUD 09 2900 GYPSUM BOARD 09 2216 LATERAL BRACING 09 2900 SOUND ATTENUATION BLANKET
