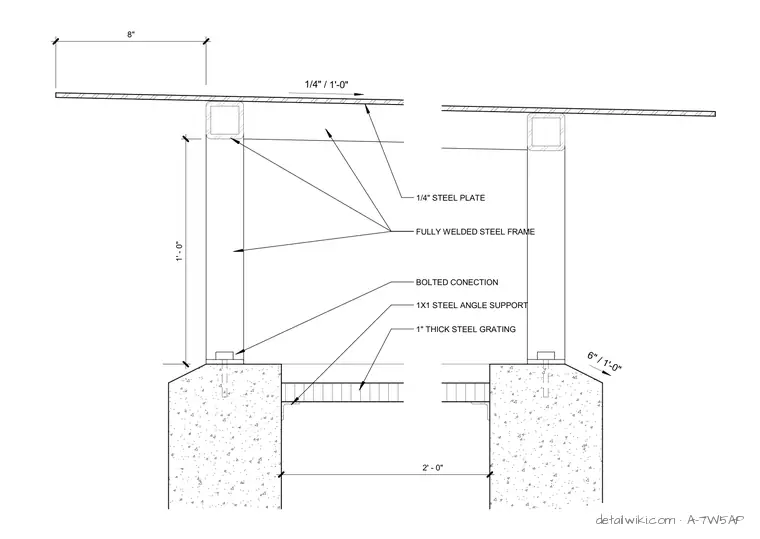

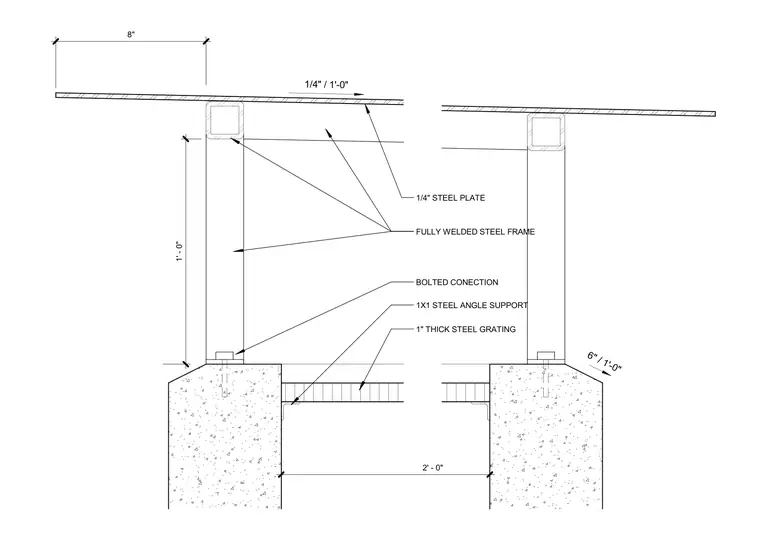

The garage exhaust vent cover assembly features a one-quarter-inch thick steel plate top surface resting on a fully welded steel frame. The frame is secured via bolted connections to a one-inch by one-inch steel angle support bearing on cast-in-place concrete walls. A one-inch thick steel grating spans the interior opening between the concrete supports.
1/4" / 1'-0" 2' - 0" 1' - 0" 8" 6" / 1'-0" 1" THICK STEEL GRATING 1X1 STEEL ANGLE SUPPORT BOLTED CONECTION FULLY WELDED STEEL FRAME 1/4" STEEL PLATE
