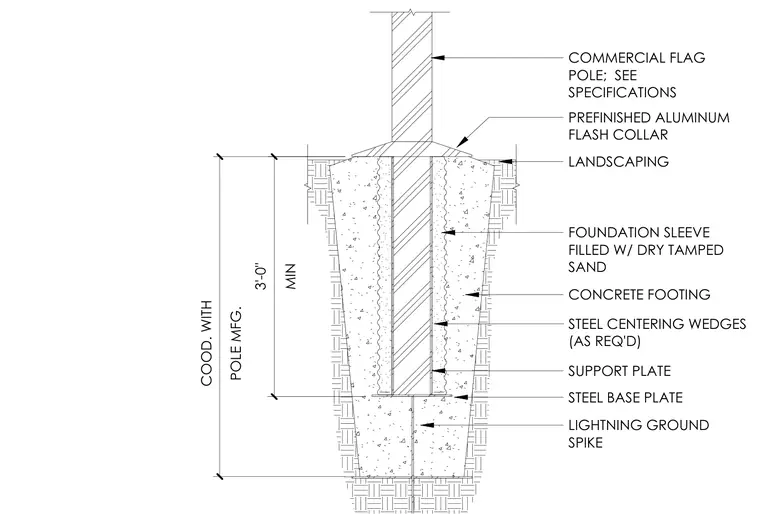

A commercial flagpole is anchored inside a foundation sleeve set within a concrete footing. The pole rests on a steel base plate with a support plate and steel centering wedges as required. A lightning ground spike extends through the bottom of the footing. The annular space inside the foundation sleeve is filled with dry tamped sand. A prefinished aluminum flash collar covers the top of the sleeve at the surrounding landscaping level, coordinated with the flagpole manufacturer.
CONCRETE FOOTING PREFINISHED ALUMINUM FLASH COLLAR COMMERCIAL FLAG POLE; SEE SPECIFICATIONS LIGHTNING GROUND SPIKE STEEL BASE PLATE SUPPORT PLATE STEEL CENTERING WEDGES (AS REQ'D) FOUNDATION SLEEVE FILLED W/ DRY TAMPED SAND LANDSCAPING MIN 3'-0" POLE MFG. COOD. WITH
