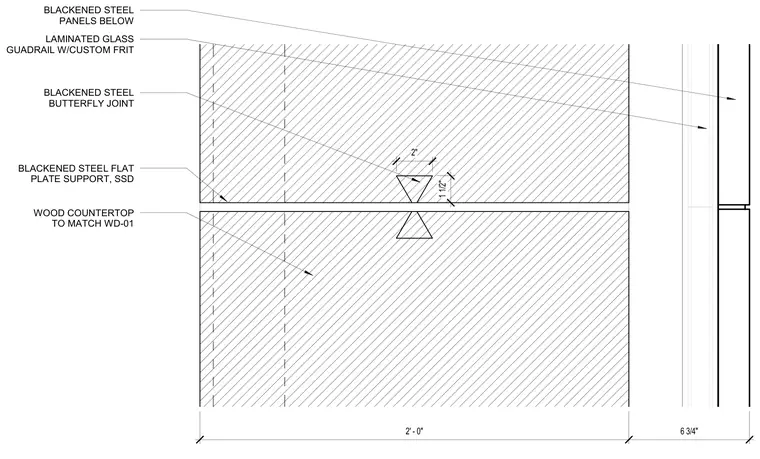

A wood countertop matches wood finish WD-01 and incorporates a custom blackened steel flat plate support designated as SSD. Adjacent panels feature blackened steel butterfly joints measuring two inches wide by one and one-half inches. Below the countertop assembly, blackened steel panels are installed. A laminated glass guardrail featuring a custom frit detail aligns adjacent to the counter structure.
2' - 0" 6 3/4" BLACKENED STEEL PANELS BELOW LAMINATED GLASS GUADRAIL W/CUSTOM FRIT BLACKENED STEEL BUTTERFLY JOINT BLACKENED STEEL FLAT PLATE SUPPORT, SSD WOOD COUNTERTOP TO MATCH WD-01 2" 1 1/2"
