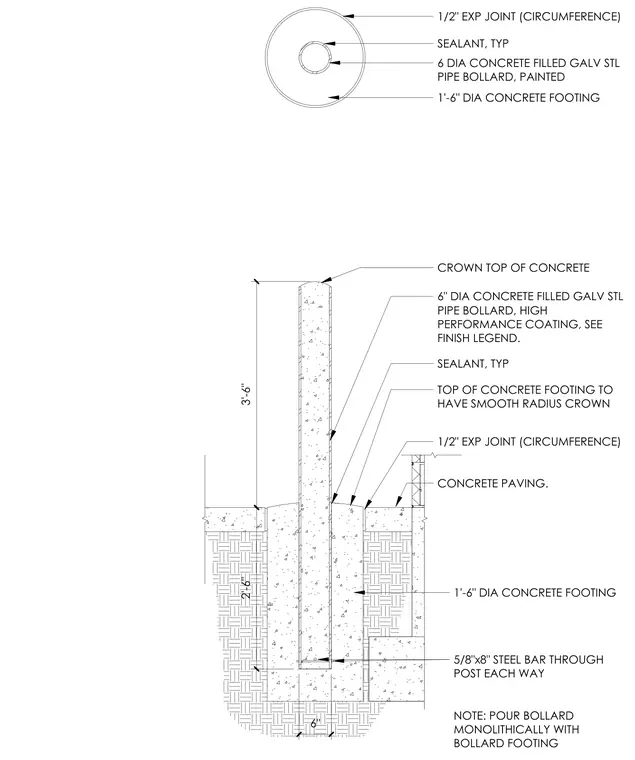

A six-inch diameter concrete-filled galvanized steel pipe bollard extends three feet six inches above grade, finished with a high performance coating and a smooth radius crown at the top of concrete. The bollard is set into a one-foot six-inch diameter concrete footing and poured monolithically with the footing. A five-eighths inch by eight-inch steel bar runs through the post each way near the bottom for anchorage. A half-inch expansion joint with sealant encircles the bollard where it meets the surrounding concrete paving.
6" 2'-6" 3'-6" 1'-6" DIA CONCRETE FOOTING CONCRETE PAVING. 6" DIA CONCRETE FILLED GALV STL PIPE BOLLARD, HIGH PERFORMANCE COATING, SEE FINISH LEGEND. TOP OF CONCRETE FOOTING TO HAVE SMOOTH RADIUS CROWN CROWN TOP OF CONCRETE 1/2" EXP JOINT (CIRCUMFERENCE) 5/8"x8" STEEL BAR THROUGH POST EACH WAY NOTE: POUR BOLLARD MONOLITHICALLY WITH BOLLARD FOOTING 6 DIA CONCRETE FILLED GALV STL PIPE BOLLARD, PAINTED 1'-6" DIA CONCRETE FOOTING 1/2" EXP JOINT (CIRCUMFERENCE) SEALANT, TYP SEALANT, TYP
