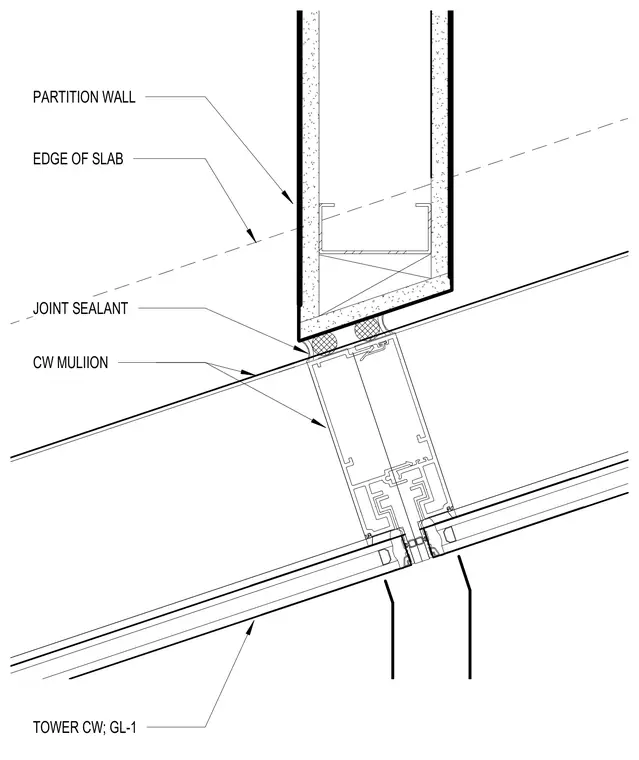

An interior partition wall terminates at an angled curtain wall mullion with a perimeter joint sealant connection. The gypsum board partition assembly meets the edge of the slab above while interfacing directly with the tower curtain wall framing. A flexible joint sealant seals the gap between the partition base and the curtain wall mullion face.
T O W E R C W ; G L - 1 P A R T I T I O N W A L L E D G E O F S L A B C W M U L I I O N J O I N T S E A L A N T
