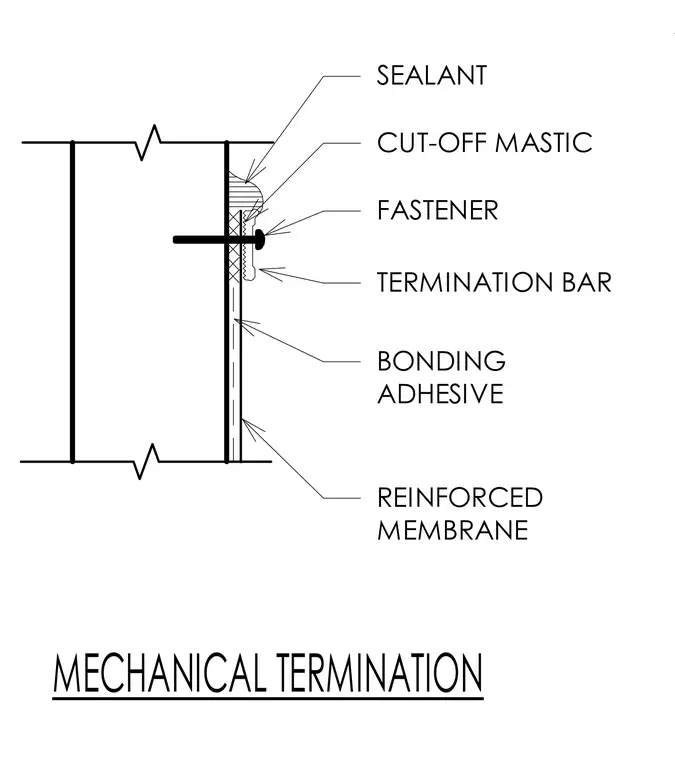

A reinforced membrane is adhered to the substrate using bonding adhesive. A mechanical termination bar is fastened through the membrane into the backing substrate. Cut-off mastic is placed behind the top edge of the termination bar, and a bead of sealant is applied along the top edge.
SEALANT CUT-OFF MASTIC FASTENER TERMINATION BAR BONDING ADHESIVE REINFORCED MEMBRANE MECHANICAL TERMINATION
