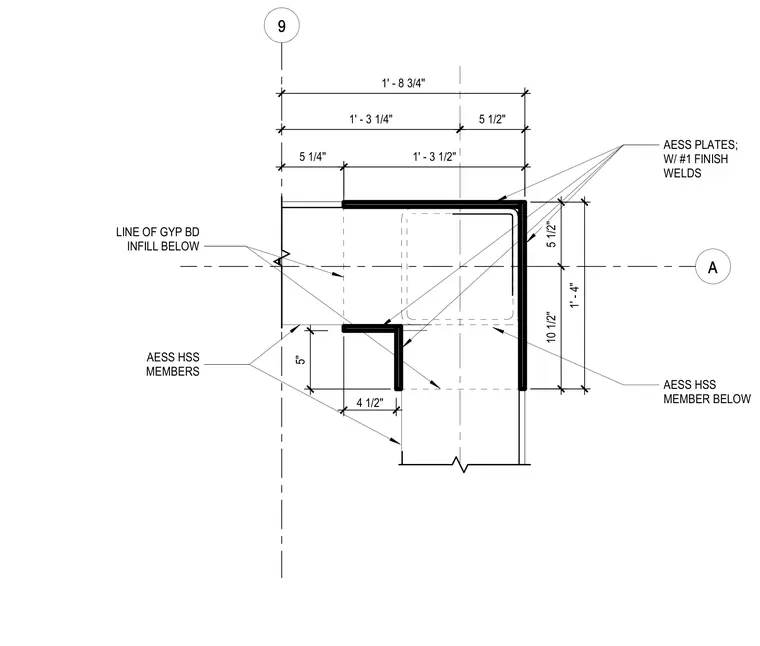

Architecturally exposed structural steel members connect with custom plates finished with number one finish welds. A hollow structural section member is positioned below with a gypsum board infill line. Dimensions map out the profile and layout of the steel plates and structural tubes.
A 9 AESS PLATES; W/ #1 FINISH WELDS AESS HSS MEMBERS 1 ' - 4 " 1 ' - 3 1 / 2 " 4 1 / 2 " 5 " LINE OF GYP BD INFILL BELOW 5 1 / 4 " 1 ' - 8 3 / 4 " 1 ' - 3 1 / 4 " 1 0 1 / 2 " 5 1 / 2 " 5 1 / 2 " AESS HSS MEMBER BELOW
