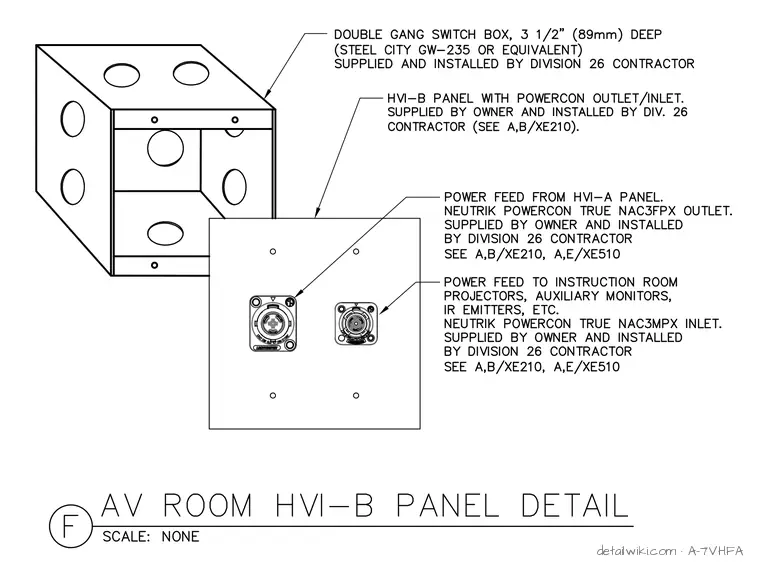

This isometric and frontal assembly shows an HVI-B panel housed in a double gang switch box measuring 3 1/2 inches deep, supplied and installed by the electrical contractor. The panel features a Neutrik PowerCon True NAC3FPX outlet receiving power feed from the HVI-A panel, and a Neutrik PowerCon True NAC3MPX inlet providing power feed to instruction room projectors, auxiliary monitors, and infrared emitters. Both components are supplied by the owner and installed by the electrical contractor per referenced electrical sheets.
