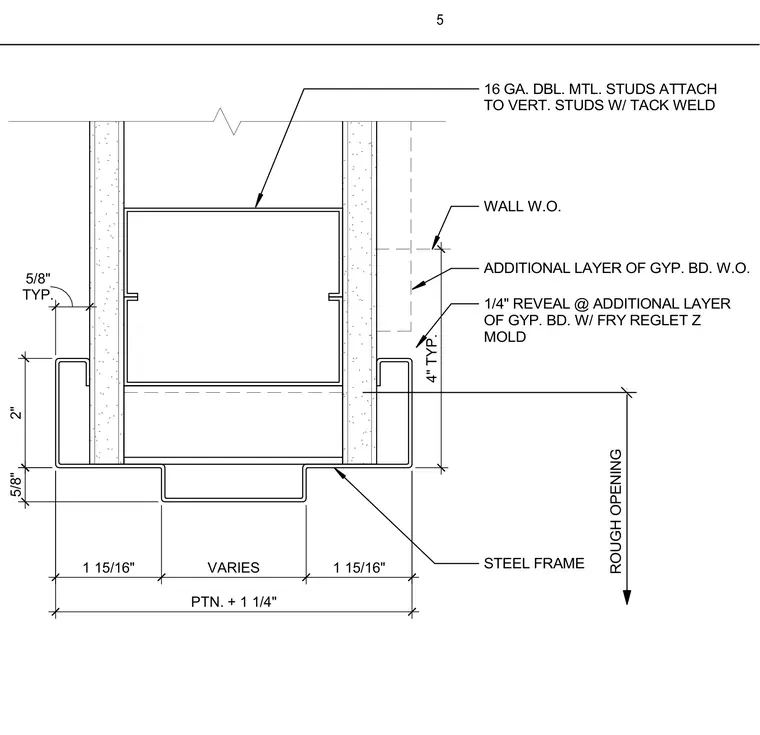

An additional layer of gypsum board forms a quarter-inch reveal around the wall opening using a Fry Reglet Z-mold. The rough opening is framed with sixteen-gauge double metal studs attached to vertical studs with tack welds. Standard five-eighths-inch gypsum board clads the assembly, providing dimensional clearances specified on the plan.
WALL W.O. TYP. 5/8" 2" 5/8" 1 15/16" VARIES 1 15/16" PTN. + 1 1/4" ADDITIONAL LAYER OF GYP. BD. W.O. 1/4" REVEAL @ ADDITIONAL LAYER OF GYP. BD. W/ FRY REGLET Z MOLD 4" TYP. A ROUGH OPENING STEEL FRAME 16 GA. DBL. MTL. STUDS ATTACH TO VERT. STUDS W/ TACK WELD 5
