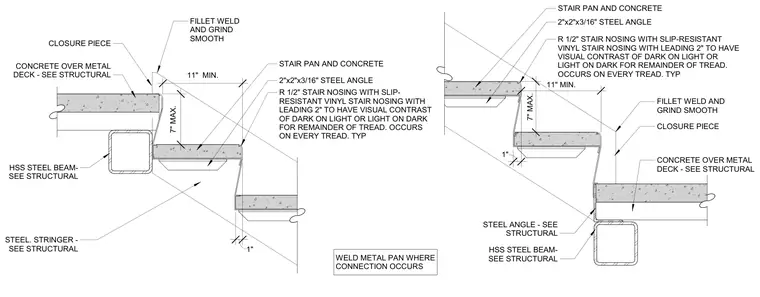

A metal stair intermediate landing connects concrete-filled metal pan treads and risers to hollow structural section steel beams and steel stringers. A two-by-two-by-three-sixteenth-inch steel angle provides support at the landing interface, complemented by a closure piece welded with a fillet weld and ground smooth. Each tread features a one-half-inch radius slip-resistant vinyl stair nosing with a leading two-inch visual contrast strip for safety. Riser heights are dimensioned at a seven-inch maximum and tread depths at an eleven-inch minimum.
STEEL. STRINGER - SEE STRUCTURAL STAIR PAN AND CONCRETE CONCRETE OVER METAL DECK - SEE STRUCTURAL FILLET WELD AND GRIND SMOOTH CLOSURE PIECE HSS STEEL BEAM- SEE STRUCTURAL 7" MAX. 11" MIN. 1" 2"x2"x3/16" STEEL ANGLE R 1/2" STAIR NOSING WITH SLIP- RESISTANT VINYL STAIR NOSING WITH LEADING 2" TO HAVE VISUAL CONTRAST OF DARK ON LIGHT OR LIGHT ON DARK FOR REMAINDER OF TREAD. OCCURS ON EVERY TREAD. TYP CONCRETE OVER METAL DECK - SEE STRUCTURAL HSS STEEL BEAM- SEE STRUCTURAL STEEL ANGLE - SEE STRUCTURAL 11" MIN. 7" MAX. STAIR PAN AND CONCRETE 2"x2"x3/16" STEEL ANGLE R 1/2" STAIR NOSING WITH SLIP-RESISTANT VINYL STAIR NOSING WITH LEADING 2" TO HAVE VISUAL CONTRAST OF DARK ON LIGHT OR LIGHT ON DARK FOR REMAINDER OF TREAD. OCCURS ON EVERY TREAD. TYP FILLET WELD AND GRIND SMOOTH CLOSURE PIECE 1" WELD METAL PAN WHERE CONNECTION OCCURS
