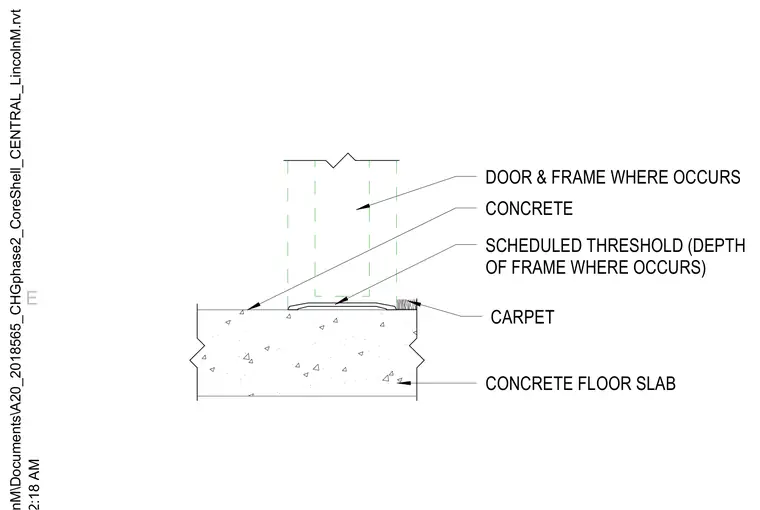

A scheduled threshold sits flush with the finished floor surface on a concrete floor slab at the door frame location. Carpet terminates neatly against the threshold assembly, providing a clean transition between flooring materials. The door and frame assembly rests directly above the threshold.
CONCRETE CONCRETE FLOOR SLAB CARPET SCHEDULED THRESHOLD (DEPTH OF FRAME WHERE OCCURS) DOOR & FRAME WHERE OCCURS E
