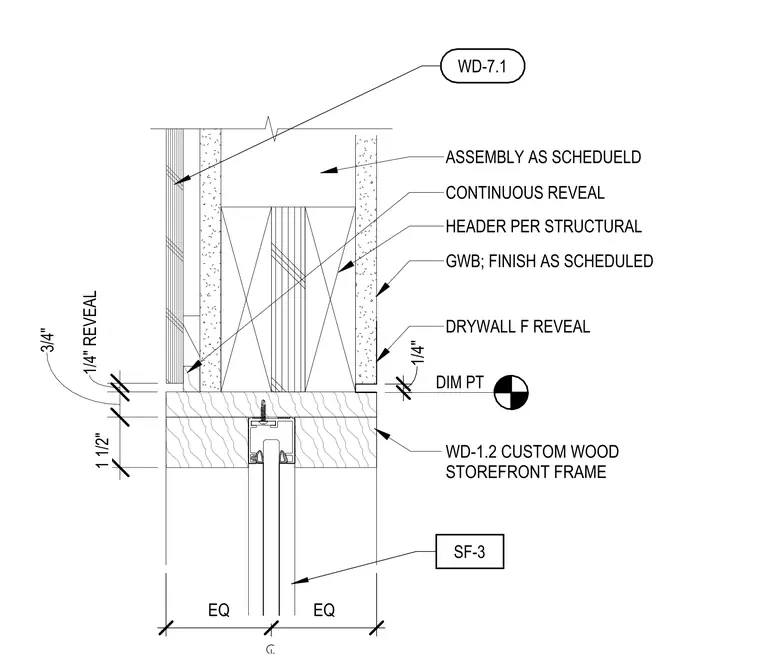

The assembly consists of a custom wood storefront frame, designated WD-1.2, secured beneath a structural header. The gypsum wallboard ceiling terminates at the frame with a one-quarter-inch reveal, creating a clean transition between the wall finish and the storefront head. A continuous reveal is maintained at the ceiling plane, with the gypsum board finished as scheduled. The storefront system, identified as SF-3, is centered within the frame opening, with equal spacing provided on either side.
