This one-hour fire-rated head of wall joint assembly features a rated gypsum board partition constructed with minimum three and five-eighths inch studs and a deflection track positioned beneath a structural floor slab and beam with spray-applied fireproofing. Mineral wool forming material is installed flush to adjacent surfaces within the joint. A spray-applied fire sealant is applied over the mineral wool with a minimum one-half inch overlap on adjacent surfaces. The assembly accommodates movement up to twenty-five percent compression or extension with joint dimensions up to two inches maximum.

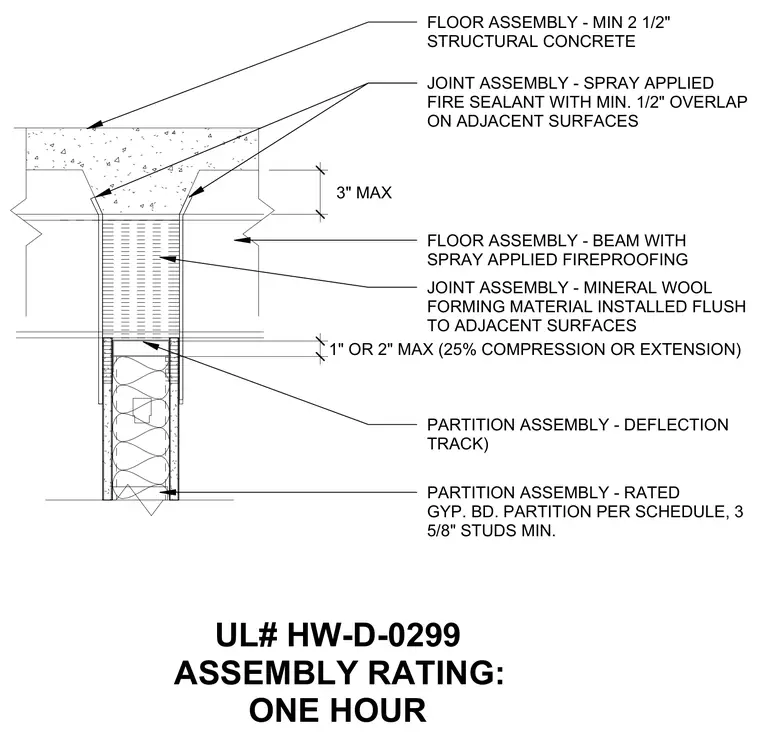

UL# HW-D-0299 ASSEMBLY RATING: ONE HOUR JOINT ASSEMBLY - SPRAY APPLIED FIRE SEALANT WITH MIN. 1/2" OVERLAP ON ADJACENT SURFACES PARTITION ASSEMBLY - RATED GYP. BD. PARTITION PER SCHEDULE, 3 5/8" STUDS MIN. FLOOR ASSEMBLY - BEAM WITH SPRAY APPLIED FIREPROOFING PARTITION ASSEMBLY - DEFLECTION TRACK) JOINT ASSEMBLY - MINERAL WOOL FORMING MATERIAL INSTALLED FLUSH TO ADJACENT SURFACES FLOOR ASSEMBLY - MIN 2 1/2" STRUCTURAL CONCRETE 3" MAX 1" OR 2" MAX (25% COMPRESSION OR EXTENSION)
