Text on the drawing

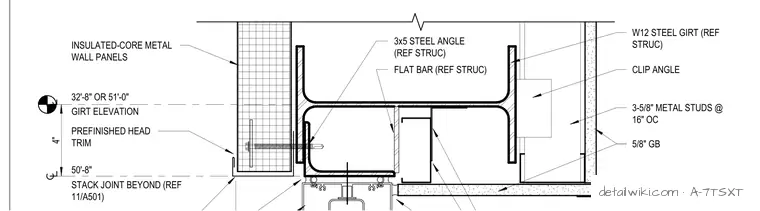

3-5/8" METAL STUDS @ 16" OC 5/8" GB W12 STEEL GIRT (REF STRUC) CLIP ANGLE 3x5 STEEL ANGLE (REF STRUC) PREFINISHED HEAD TRIM INSULATED-CORE METAL WALL PANELS 4" 32'-8" OR 51'-0" GIRT ELEVATION 50'-8" STACK JOINT BEYOND (REF 11/A501) FLAT BAR (REF STRUC)
