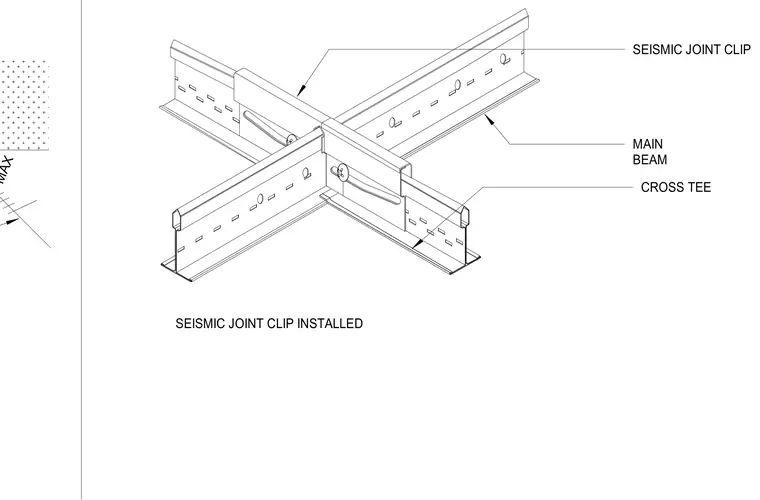

A seismic joint clip bridges the main beam and cross tee members in a suspended ceiling grid assembly. The clip accommodates lateral movement at building expansion joints while maintaining structural integrity of the ceiling framing. The components align orthogonally to allow for specified rotational clearance up to 45 degrees maximum during seismic events.
