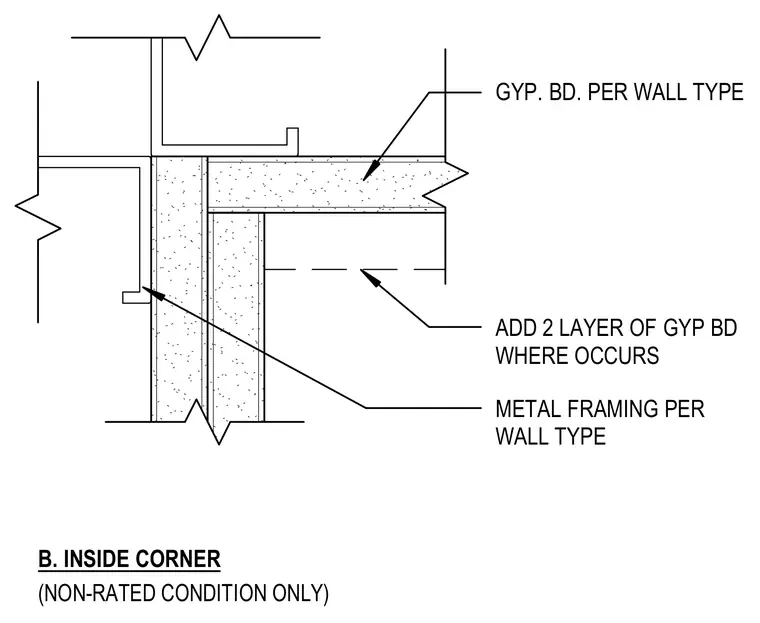

Metal-framed non-rated partitions intersect at an inside corner at a ninety-degree angle to maintain partition alignment, utilizing metal framing and gypsum board per wall type, with two additional layers of gypsum board added at the corner intersection where specified.
B. INSIDE CORNER GYP. BD. PER WALL TYPE METAL FRAMING PER WALL TYPE (NON-RATED CONDITION ONLY) ADD 2 LAYER OF GYP BD WHERE OCCURS
