Architectural · A-7TJ58

Floor Box and Conduit Penetration at Concrete Slab

Materials

Elements

Floors / Slabs Decks Roof / Floor Openings

About this detail

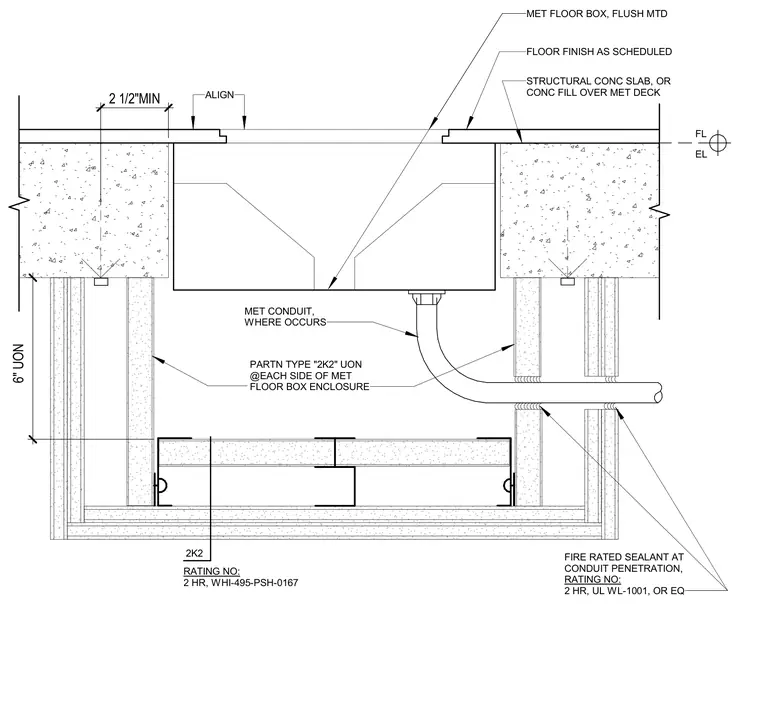

A flush-mounted metal floor box is set within a structural concrete slab or concrete fill over metal deck with a floor finish applied as scheduled. Partition assemblies of type 2K2 occur on each side of the metal floor box enclosure. Metal conduit routes from the floor box, with fire-rated sealant applied at the conduit penetration providing a two-hour rating per UL WL-1001 or equivalent.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
