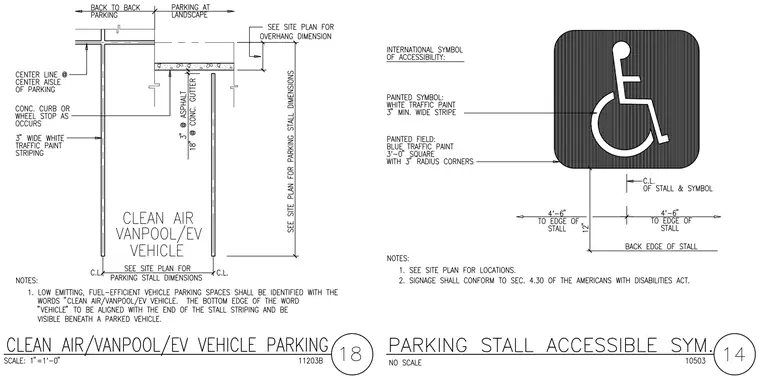

Pavement markings, striping dimensions, and signage layout for clean air, vanpool, and electric vehicle parking stalls, alongside an accessible parking symbol layout. The stall layout specifies a center-to-center dimension bounded by concrete curbs or wheel stops as applicable, with 3-inch wide white traffic paint striping. The clean air and EV vehicle stalls require specific lettering aligned with the end of the stall striping to remain visible beneath a parked vehicle. The accessible parking symbol detail specifies a 3-foot square blue traffic paint field with 3-inch radius corners and a white traffic paint international symbol of accessibility inside a 3-inch minimum wide stripe.
