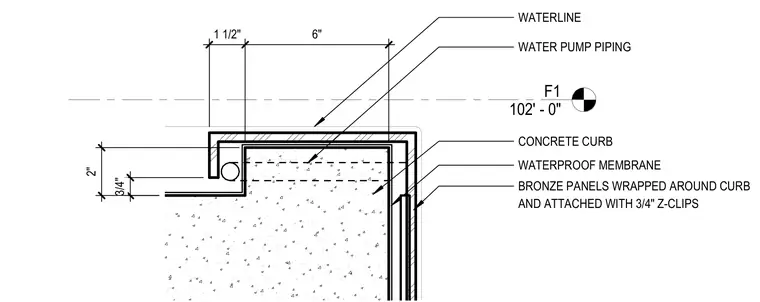

A concrete curb supports an exterior water feature with integrated water pump piping and a continuous waterproof membrane applied beneath the cladding. Bronze panels wrap over the top and face of the curb, secured with three-quarter-inch Z-clips. The assembly incorporates a one-and-a-half-inch horizontal clearance from the inner face and a two-inch vertical drop for the panel return. A waterline is established at elevation F1 one hundred two feet zero inches.
F1 102' - 0" 3 / 4 " 2 " 1 1 / 2 " 6 " WATERLINE WATER PUMP PIPING CONCRETE CURB WATERPROOF MEMBRANE BRONZE PANELS WRAPPED AROUND CURB AND ATTACHED WITH 3/4" Z-CLIPS
