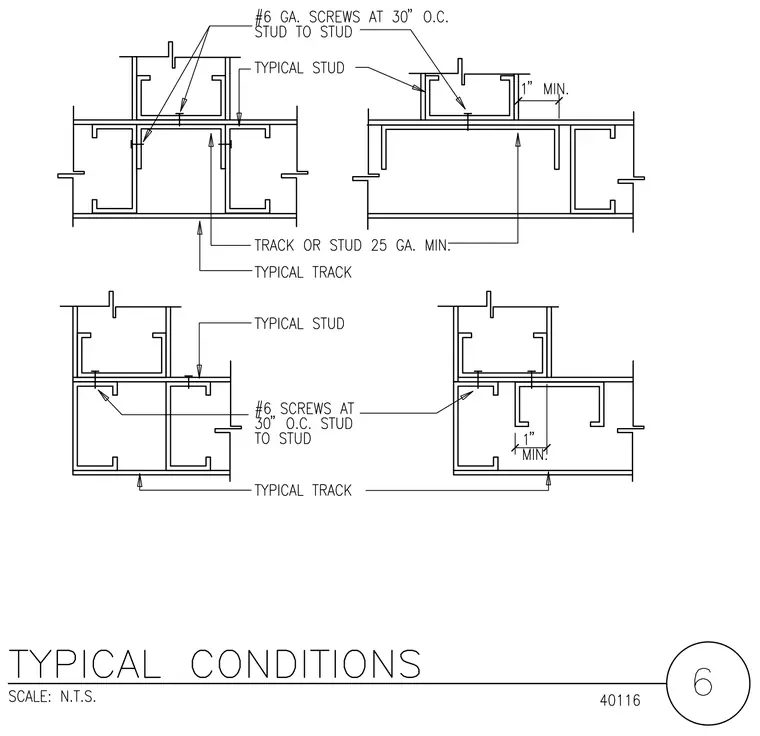

Cold-formed metal stud framing details showing typical corner and intersection configurations for interior or exterior partitions. Light-gauge steel studs are connected using number six screws spaced at thirty inches on center stud-to-stud. Tracks and studs utilize a minimum twenty-five gauge thickness. Clearances and minimum dimensional offsets are indicated for proper framing alignment.
