Structural · A-7TAZ4

Reinforced Concrete Wall Beam Detail and Schedule

Materials

Reinforced Concrete

Elements

Columns Beams Walls Floors / Slabs Reinforcing

Connections

Rebar Splice / Development

About this detail

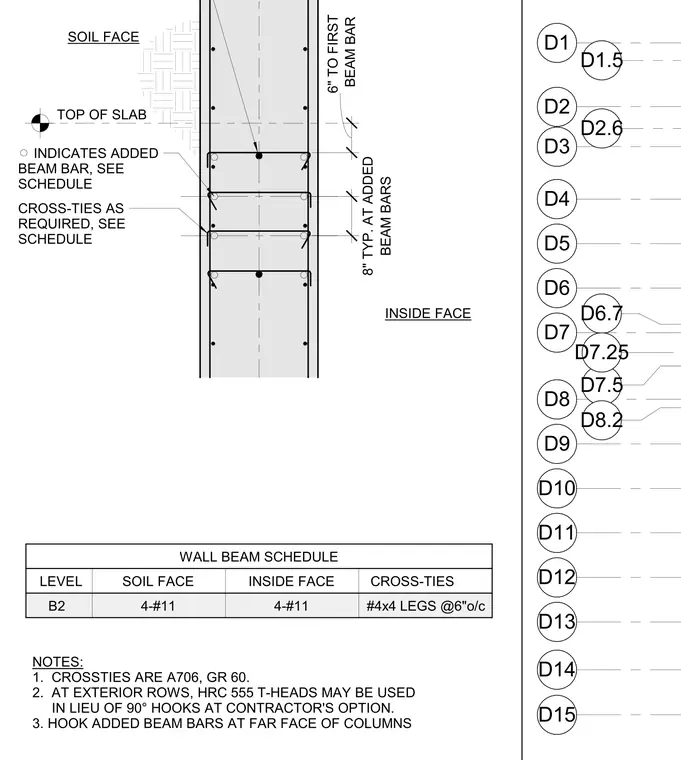

This reinforced concrete wall beam detail shows longitudinal beam bars and cross-ties placed between the soil face and inside face. The detail specifies four number eleven beam bars for both the soil and inside faces, with number four by four legs cross-ties spaced at six inches on center as detailed in the wall beam schedule for level B2. Cross-ties are specified as ASTM A706 Grade 60 reinforcing steel. At exterior rows, Headed Reinforcement Corporation 555 T-heads may be used in lieu of ninety-degree hooks at the contractor's option. Added beam bars are hooked at the far face of columns, maintaining a six-inch clearance to the first beam bar and an eight-inch typical spacing at added bars.
