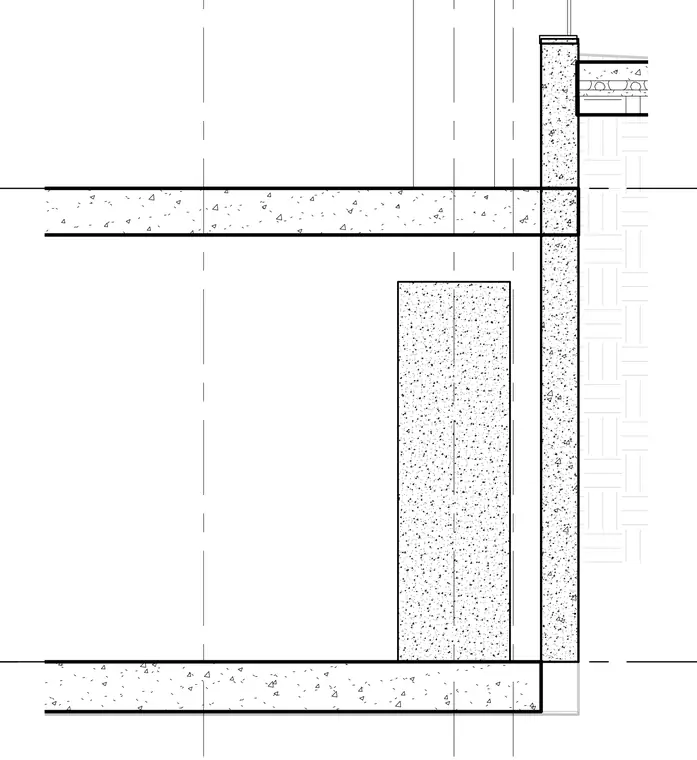

The assembly consists of a concrete foundation wall bearing on a footing, connecting to a reinforced concrete slab on grade at the interior. An interior concrete stem wall or pier sits adjacent to the slab edge. Earth retention is indicated on the exterior side of the foundation wall. Grid lines establish the structural coordination of the wall and slab edges.
