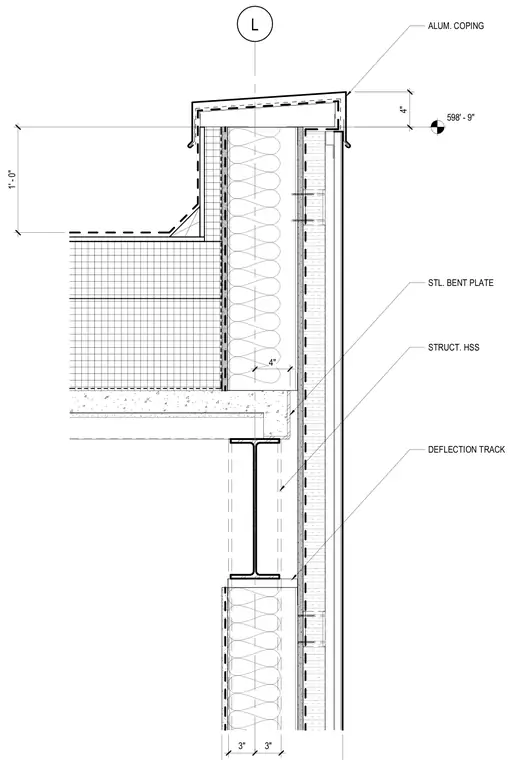

An aluminum coping caps the top of the parapet wall assembly above a steel bent plate and structural hollow structural section. A deflection track accommodates vertical movement at the wall head connection. Insulation and sheathing layers line the exterior framing and parapet interior.
L ALUM. COPING STL. BENT PLATE 1' - 0" 4" 598' - 9" DEFLECTION TRACK 3" 3" 4" STRUCT. HSS
