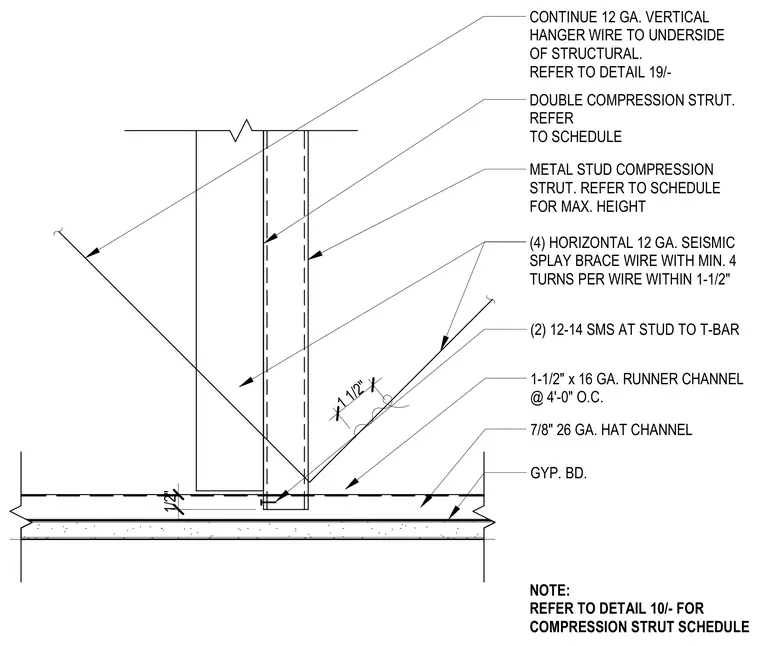

Four horizontal twelve-gauge seismic splay brace wires anchor to the runner channel with a minimum of four turns per wire within one and a half inches. A metal stud compression strut supports the ceiling assembly, with sizing determined per the schedule. A twelve-gauge vertical hanger wire extends to the underside of the structural framing above. One and a half inch by sixteen-gauge runner channels are spaced at four feet on center, supporting seven-eighths inch twenty-six-gauge hat channels and gypsum board finish.
NOTE: REFER TO DETAIL 10/- FOR COMPRESSION STRUT SCHEDULE 1/2" 1 1/2" CONTINUE 12 GA. VERTICAL HANGER WIRE TO UNDERSIDE OF STRUCTURAL. REFER TO DETAIL 19/- DOUBLE COMPRESSION STRUT. REFER TO SCHEDULE METAL STUD COMPRESSION STRUT. REFER TO SCHEDULE FOR MAX. HEIGHT (4) HORIZONTAL 12 GA. SEISMIC SPLAY BRACE WIRE WITH MIN. 4 TURNS PER WIRE WITHIN 1-1/2" (2) 12-14 SMS AT STUD TO T-BAR 1-1/2" x 16 GA. RUNNER CHANNEL @ 4'-0" O.C. 7/8" 26 GA. HAT CHANNEL GYP. BD.
