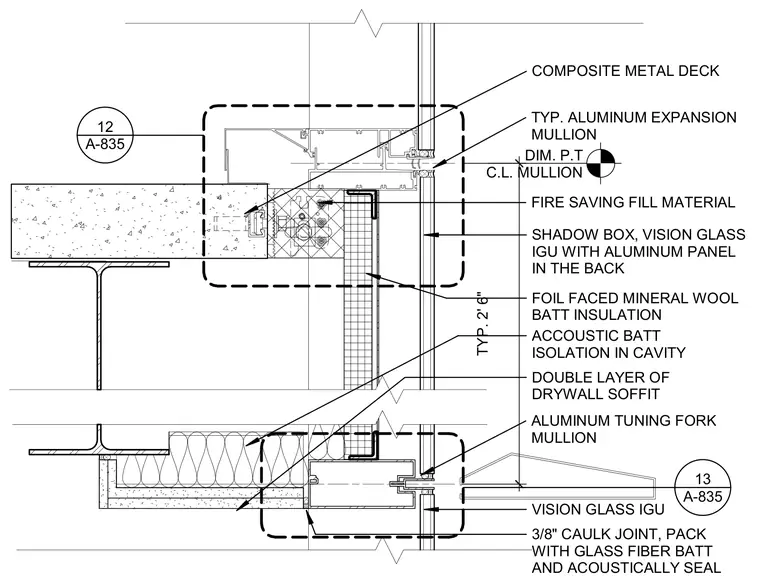

This architectural wall section details the curtain wall head and sill interface with a composite metal deck floor slab. The head condition incorporates a typical aluminum expansion mullion and aluminum tuning fork mullion set against the slab edge, sealed with fire-saving fill material and insulated with foil-faced mineral wool batts. The vision glass insulated glazing unit features a shadow box with an aluminum panel backed by foil-faced mineral wool insulation. Below, the sill assembly meets a double layer of drywall soffit enclosing acoustic batt insulation in the cavity, finished with a three-eighths-inch caulked joint packed with glass fiber batt and acoustically sealed.
DIM. P.T C.L. MULLION TYP. 2' 6" COMPOSITE METAL DECK FIRE SAVING FILL MATERIAL TYP. ALUMINUM EXPANSION MULLION ALUMINUM TUNING FORK MULLION SHADOW BOX, VISION GLASS IGU WITH ALUMINUM PANEL IN THE BACK FOIL FACED MINERAL WOOL BATT INSULATION VISION GLASS IGU A-835 13 A-835 12 ACCOUSTIC BATT ISOLATION IN CAVITY DOUBLE LAYER OF DRYWALL SOFFIT 3/8" CAULK JOINT, PACK WITH GLASS FIBER BATT AND ACOUSTICALLY SEAL
