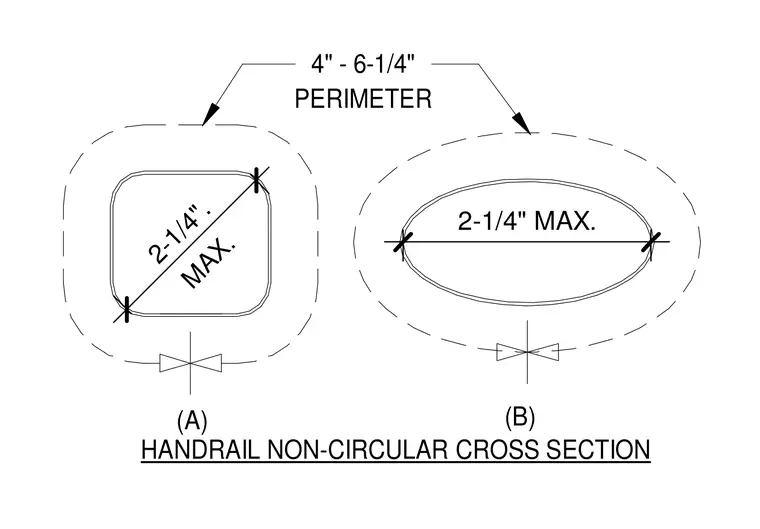

Non-circular handrail profiles must adhere to specific dimensional requirements for accessibility and grip clearance. The perimeter of the cross section ranges from four inches to six and one-quarter inches. The maximum cross-sectional dimension is limited to two and one-quarter inches.
(A) (B) HANDRAIL NON-CIRCULAR CROSS SECTION 4" - 6-1/4" 2-1/4" MAX. PERIMETER MAX. 2-1/4".
