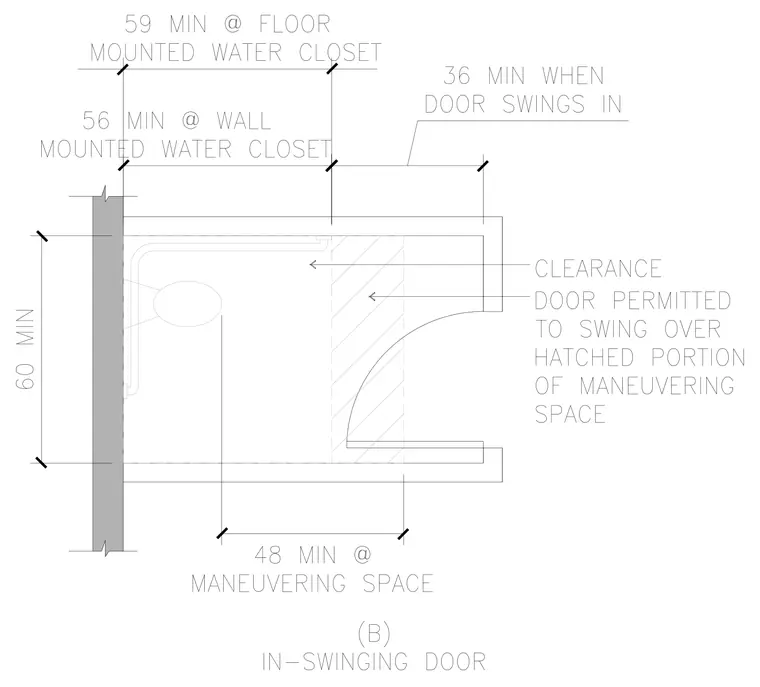

An accessible water closet stall configuration details the required minimum clearances for floor mounted and wall mounted fixtures alongside an in-swinging entry door. The floor plan indicates a minimum depth of fifty-nine inches at floor mounted water closets and fifty-six inches at wall mounted water closets from the rear wall. A sixty-inch minimum width is maintained across the stall assembly. The maneuvering space requires a forty-eight-inch minimum dimension, with a thirty-six-inch minimum provided when the door swings in. The door is permitted to swing over the hatched portion of the maneuvering space clearance zone.
